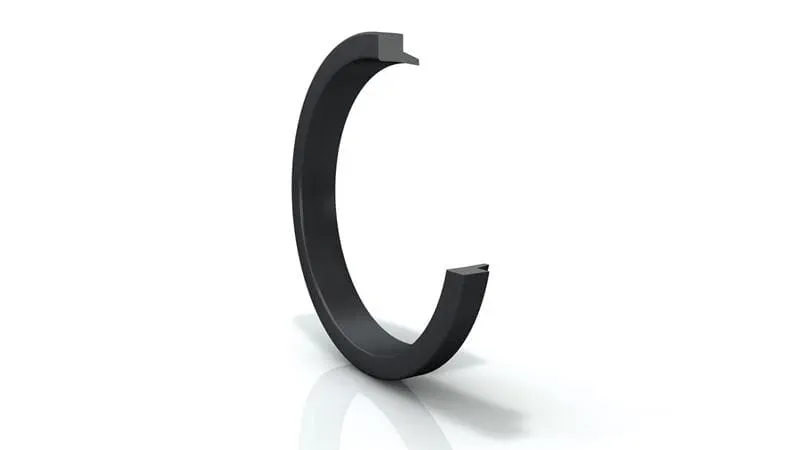

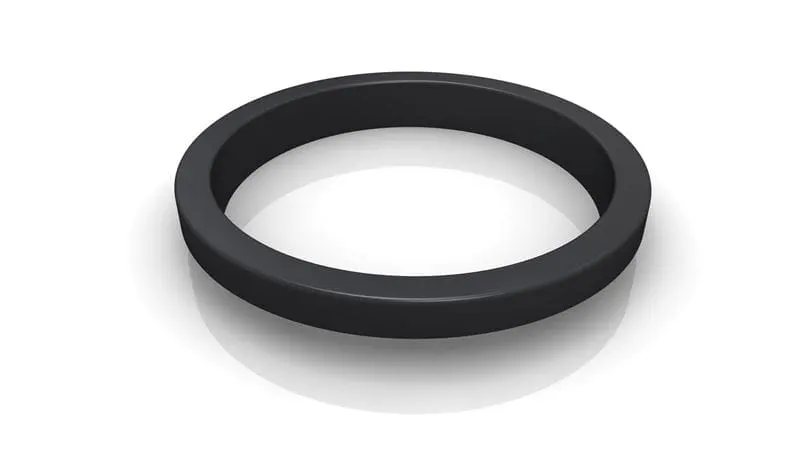

Scraper WRM is a single-acting, heat-molded elastomer scraper. It possesses a comb profile sealing surface on its outer diameter which guarantees a firm seat in the groove. It is easy to install in closed grooves.
Wiper/Scraper/A:
TSS Article Number (3 to 9)P001400
Signature StandardWAP001400-N9T60
Type of Article0
Quality (10th Digit)-

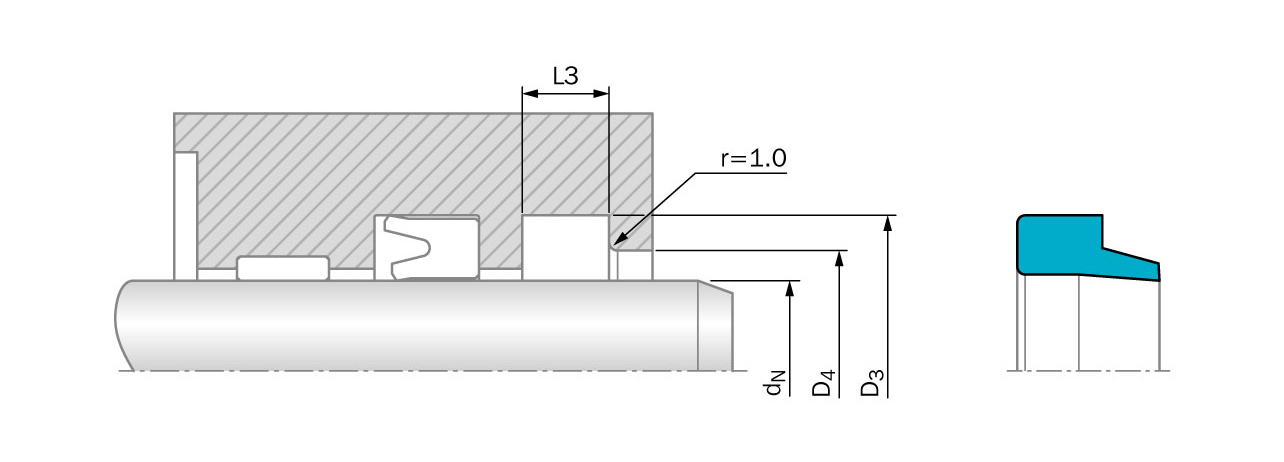

Root Groove Inside Diameter140 mm
Root Groove Outside Diameter152.2 mm
Compound codeN9T60
Root Groove Width7.1 mm
Groove Diameter Inside140 mm
Groove Diameter Outside152.2 mm
Groove Width7.1 mm
Groove Thickness6.1 mm
Article GroupWA
Material Information for the product(s) on this page
N9T60
Material Code Class:
Elastomer
Shore A Hardness:
90+/- 3
Color:
Black
Gravity Unit:
g/cm³
Gravity Tolerance:
+/-0.02
Minimum Temperature:
-25
Maximum Hardness:
90
Hardness unit:
Shore A
Minimum Hardness:
90
Maximum Temperature:
100
Material Type:
NBR
Material:
N9T60
Hardness Tolerance:
+/- 3
Specific Gravity:
1.35
