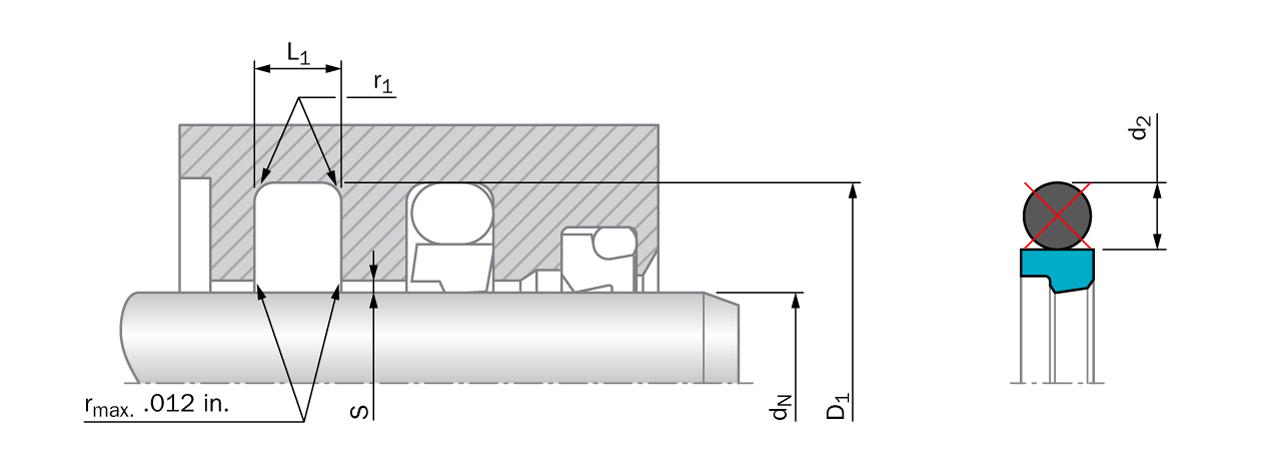

Turcon® Stepseal® K is a high-performance, single-acting rod or piston seal designed for dynamic applications. Made from Turcon®, a proprietary PTFE-based material, it offers low friction, excellent wear resistance, and minimal stick-slip. Its step-shaped design ensures effective sealing, even under high pressure and varying temperatures, making it ideal for demanding hydraulic systems in industrial and mobile equipment. The O-Ring is not included with this item.
Seals Helsingor Material Class:
Seal Tube OD Tolerance From77.45 mm
Material Number200000024220
Seal Tube OD Tolerance Max16 mm
Seal Tube ID Tolerance Min-16 mm
Seal Tube ID Tolerance Max-1.3 mm
Seal Tube OD Tolerance To92.15 mm
Seal Tube ID Tolerance To67.95 mm
Seal Tube ID Tolerance From53.25 mm
Class Dependencies200000024220
Ring Diameter Outside76.15 mm
Compound codeT46
Ring Diameter Inside69.25 mm
Compound Type110
Seal Tube OD Tolerance Min1.3 mm
Material Information for the product(s) on this page
T46
Gravity Unit:
g/cm³
Material:
T46
Material Type:
PTFE
Material Code Class:
Thermoplastic
Maximum Temperature:
260
Minimum Temperature:
-200
Ball Hardness:
29
Color:
Greyish to Dark Brown
Gravity Tolerance:
+/-0.04
Specific Gravity:
3.07
