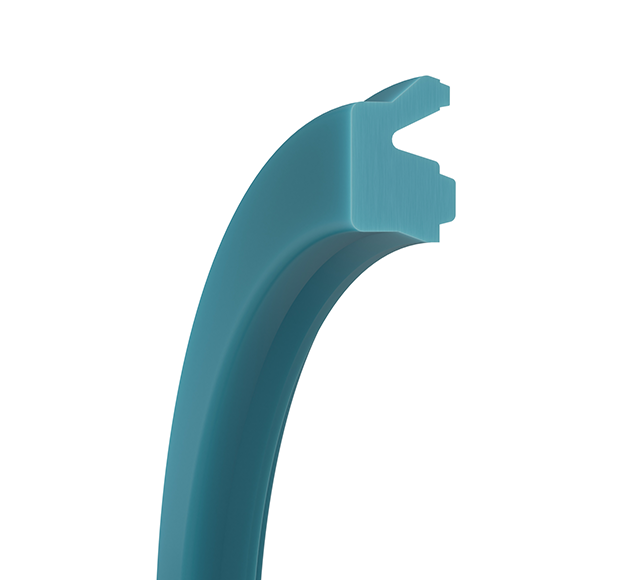

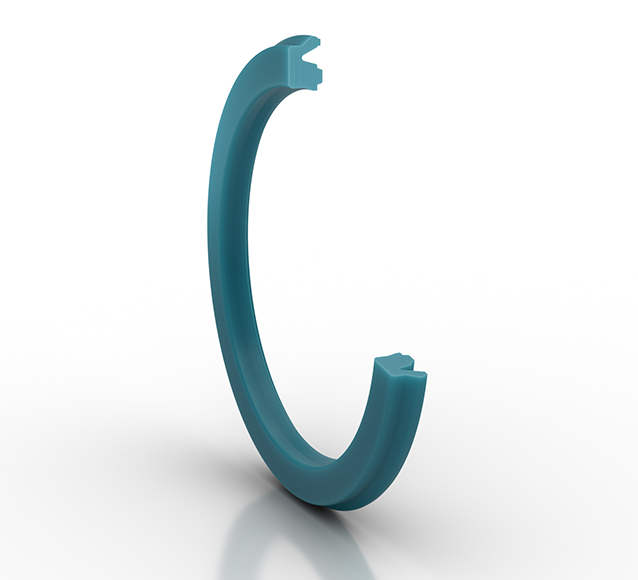

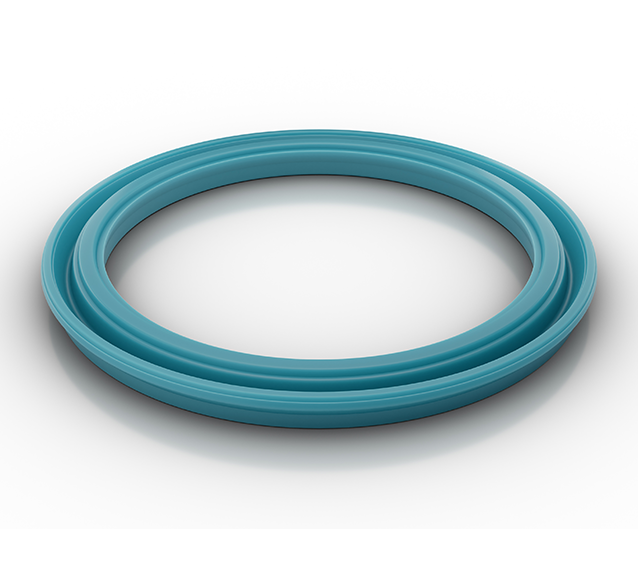

Seal dimensions are in line with cylinder diameters according to ISO 3320. Seal design guaranties high reliability and simple snap assembly. This particular polyurethane offers exceptional wear resistance and extremely high operating performance. Special lip design for pneumatic application to maintain lubrication film and minimize friction. The seal has an optimized, stick-slip reducing design for use in end positioned damped cylinders with exhaust throttles.
Pneumatic -Piston Seal-:
Ring Diameter Outside0 mm
TSS Article Number (3 to 9)DG00630
Signature StandardAPDG00630EZ30
Type of Article0
Quality (10th Digit)E

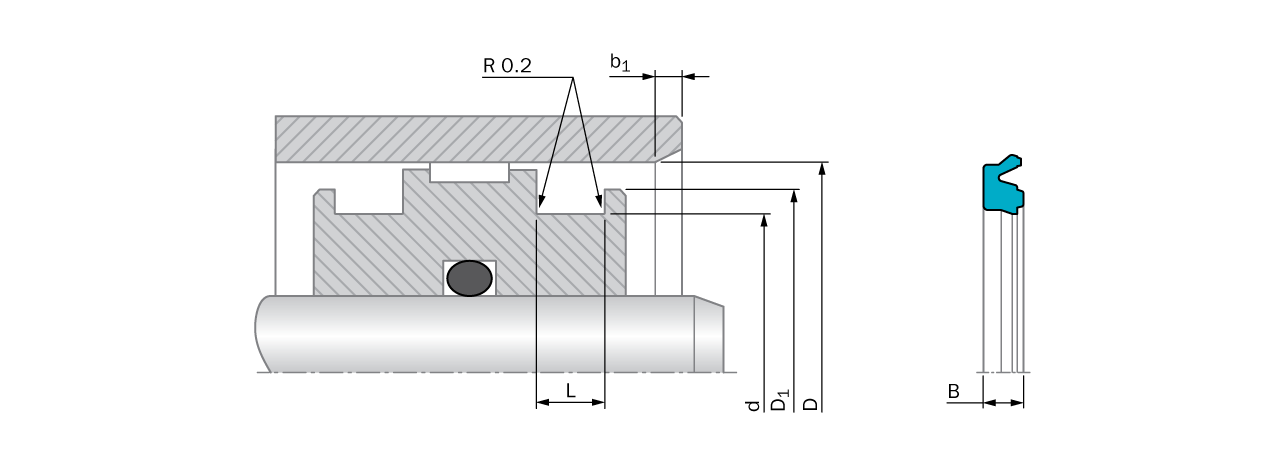

Root Groove Inside Diameter53 mm
Ring Diameter Inside0 mm
Root Groove Thickness4.5 mm
Root Groove Outside Diameter63 mm
Compound codeZ30
Groove Diameter Inside53 mm
Groove Diameter Outside63 mm
Groove Width4.5 mm
Groove Thickness0 mm
Article GroupAP
Ring Thickness0 mm
Ring Width0 mm
Material Information for the product(s) on this page
Z30
Z30 Engineering Data Sheet_Ed1_rev0Z30 Specification_Ed1_rev0
Gravity Tolerance:
+/-0.02
Hardness unit:
Shore A
Color:
Blue
Minimum Hardness:
85
Material:
Z30
Shore A Hardness:
85+/- 3
Material Type:
PUR
Gravity Unit:
g/cm³
Material Code Class:
Thermoplastic
Hardness Tolerance:
+/- 3
Minimum Temperature:
-40
Maximum Temperature:
85
Specific Gravity:
1.17
Maximum Hardness:
85
