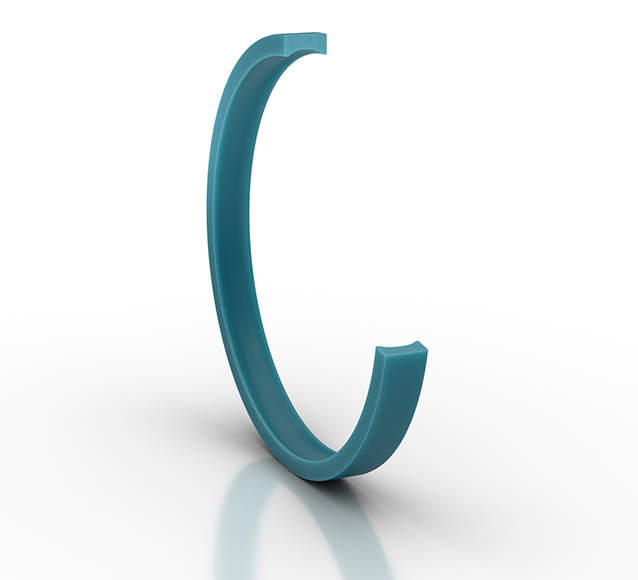

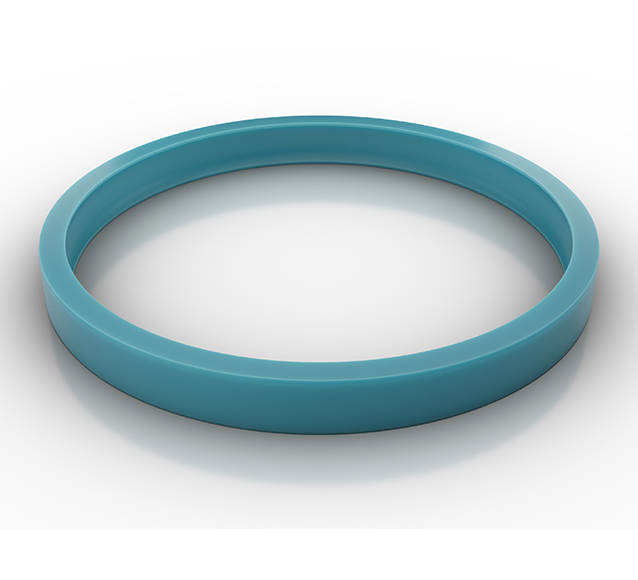

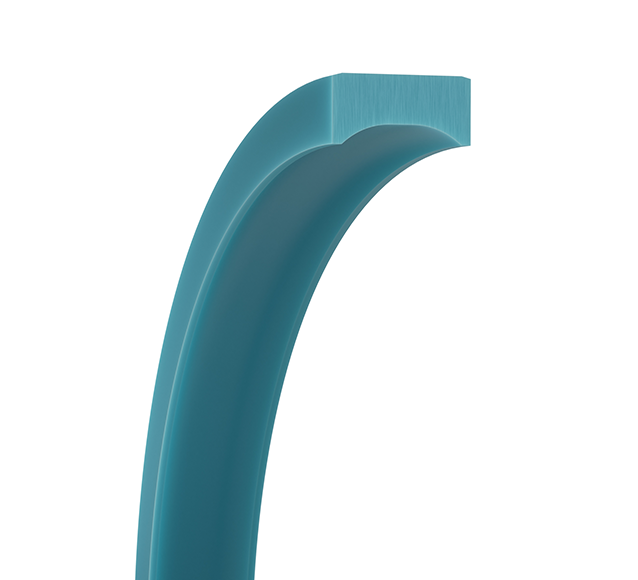

Double-acting Glyd Ring® is available as piston seal and is comprised of a slipper seal and an energizing O-Ring. This means less installation space is required. Different material combinations provide solutions suitable for special pneumatic applications where minimum static and dynamic friction, low stick-slip, high speed performance or wide temperature range are required. The O-Ring is not included with this item.
Pneumatic -Piston Seal-:
TSS Article Number (3 to 9)G100200
Signature StandardAPG100200-Z80
Type of Article0
Quality (10th Digit)-

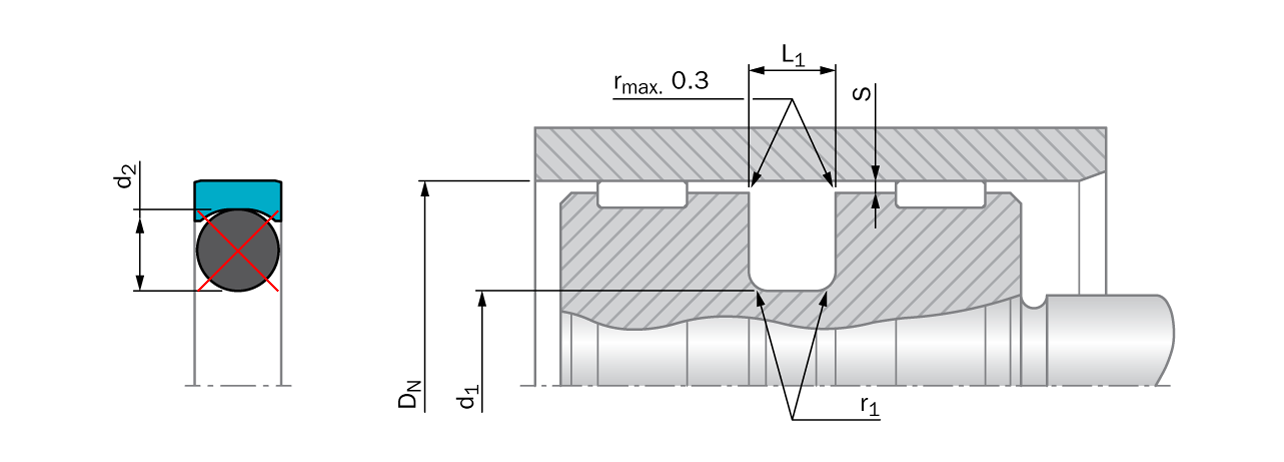

Root Groove Inside Diameter14 mm
Root Groove Thickness3 mm
Root Groove Outside Diameter20 mm
Root Ring Inside Diameter18.17 mm
Root Groove Width2.85 mm
Root Ring Width0.99 mm
Root Ring Outside Diameter20.15 mm
Groove Diameter Inside14 mm
Groove Diameter Outside20 mm
Groove Width2.85 mm
Groove Thickness3 mm
Article GroupAP
Ring Thickness2.65 mm
Ring Width0.99 mm
Root Ring Thickness2.65 mm
Material Information for the product(s) on this page
Z80
Maximum Temperature:
80
Ball Hardness:
29
Material Code Class:
Thermoplastic
Material:
Z80
Gravity Tolerance:
+/-0.01
Color:
White to Offwhite
Specific Gravity:
0.93
Minimum Temperature:
-200
Material Type:
UHMW PE
Gravity Unit:
g/cm³
