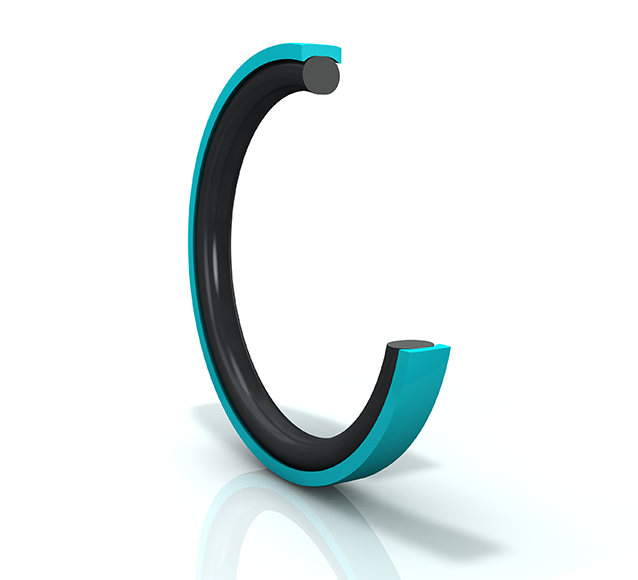

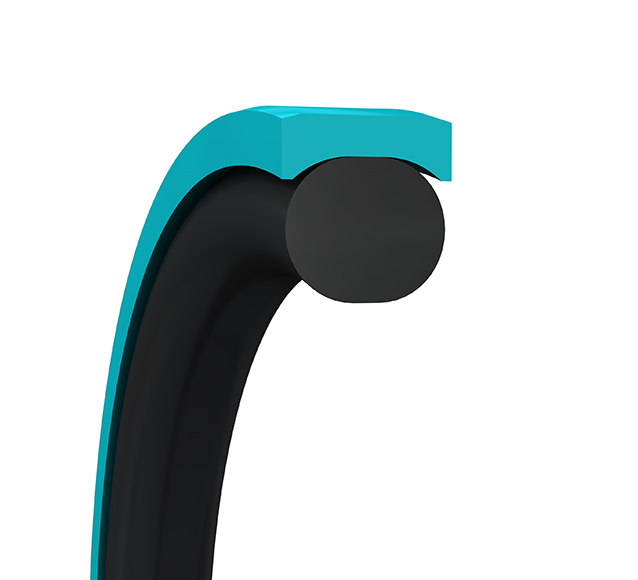

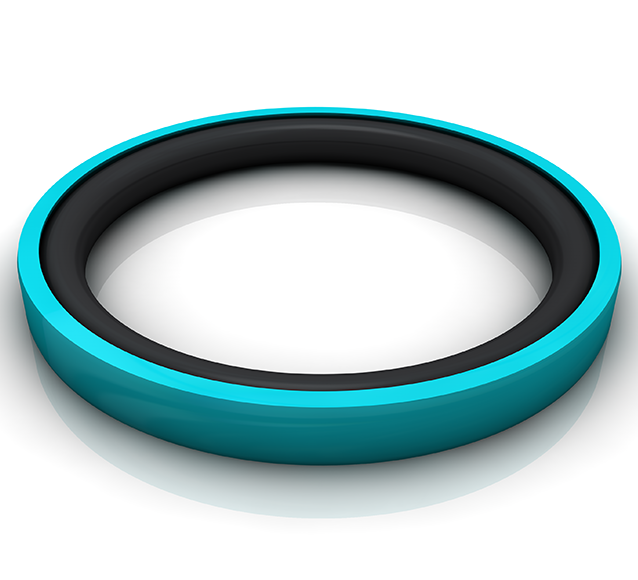

Double-acting Glyd Ring® is available as piston seal and is comprised of a slipper seal and an energizing O-Ring. This means less installation space is required. Different material combinations provide solutions suitable for special pneumatic applications where minimum static and dynamic friction, low stick-slip, high speed performance or wide temperature range are required.
Pneumatic -Piston Seal-:
Ring Diameter Outside0 mm
TSS Article Number (3 to 9)G100280
Signature StandardAPG100280-Z80N
Type of Article0
Quality (10th Digit)-

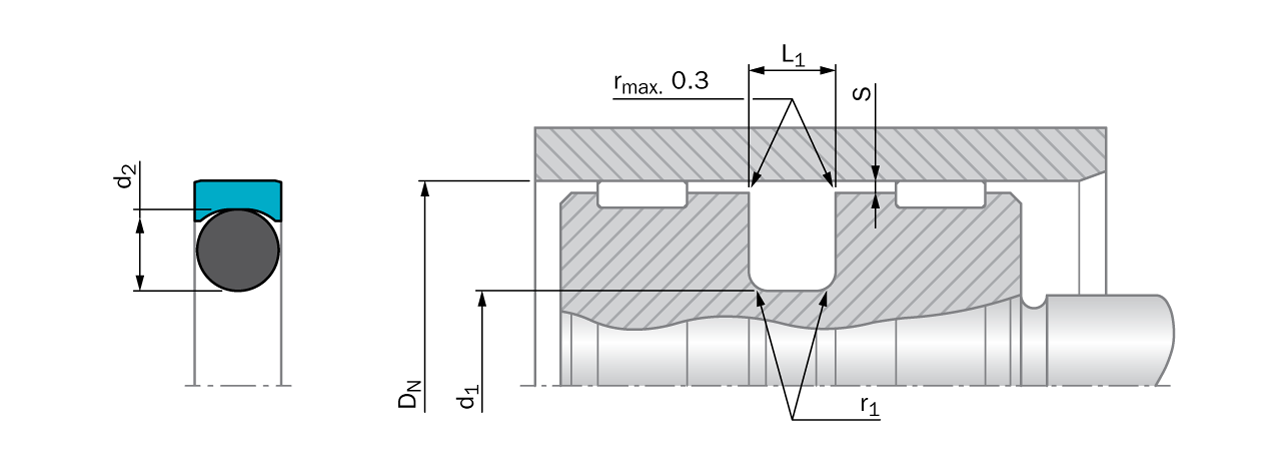

Root Groove Inside Diameter22 mm
Ring Diameter Inside0 mm
Root Groove Thickness3 mm
Root Groove Outside Diameter28 mm
Root Ring Inside Diameter0 mm
Compound codeZ80N
Root Groove Width2.85 mm
Root Ring Width0 mm
Root Ring Outside Diameter0 mm
Groove Diameter Inside22 mm
Groove Diameter Outside28 mm
Groove Width2.85 mm
Groove Thickness3 mm
Article GroupAP
Ring Thickness0 mm
Ring Width0 mm
Root Ring Thickness0 mm
Material Information for the product(s) on this page
N7083
Color:
Black
Hardness unit:
Shore A
Hardness Tolerance:
+/- 5
Gravity Tolerance:
+/-0.02
Maximum Temperature:
100
Shore A Hardness:
70+/- 5
Material:
N7083
Minimum Hardness:
70
Maximum Hardness:
70
Minimum Temperature:
-30
Gravity Unit:
g/cm³
Material Type:
NBR
Specific Gravity:
1.24
Material Code Class:
Elastomer
Z80
Maximum Temperature:
80
Ball Hardness:
29
Material Code Class:
Thermoplastic
Material:
Z80
Gravity Tolerance:
+/-0.01
Color:
White to Offwhite
Specific Gravity:
0.93
Minimum Temperature:
-200
Material Type:
UHMW PE
Gravity Unit:
g/cm³
