BBP80B012-N962N

SAP Article number: 200000106082

product image thumbnail

Please login to see the prices

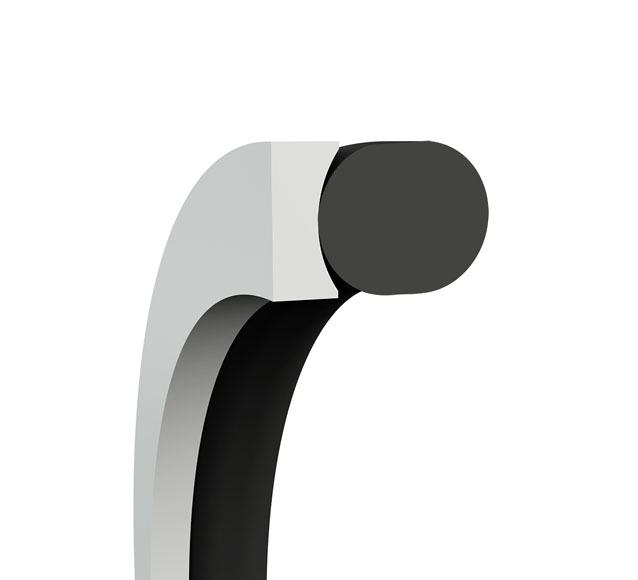

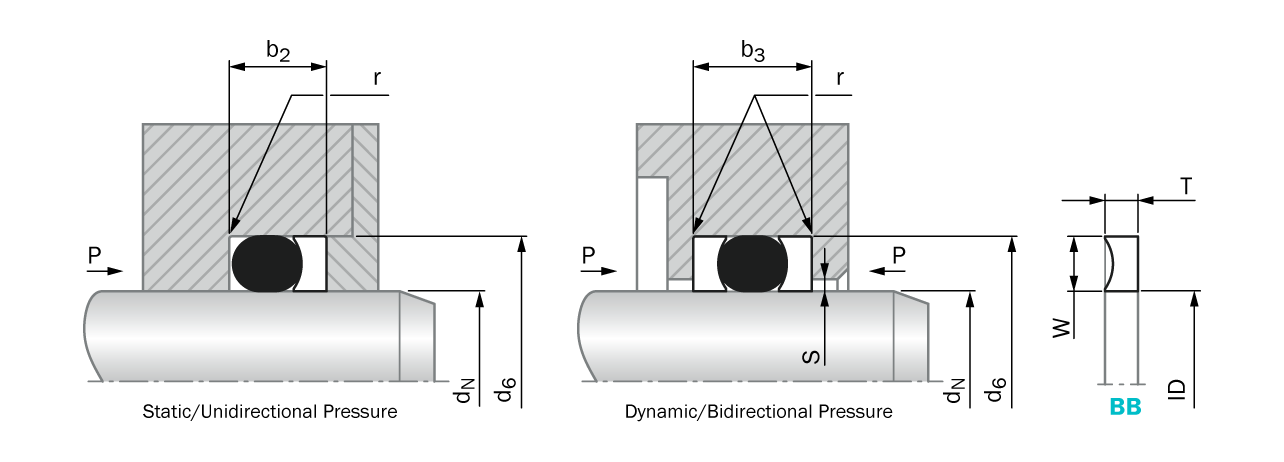

Type BB Back-up Rings have a concave cross section and are made from either PTFE or NBR or FKM materials. The large contact surface protects the O-Ring against deformation in case of high pulsating pressures. Dimensional stability of the O-Ring improves the sealing force and increases the service life. Static use if preferable and reciprocating movement is possible.

BU Concave solid ID:

SAP Article number200000106082

TSS Article Number (3 to 9)P80B012

Signature StandardBBP80B012-N962N

Quality (10th Digit)-

Ring Diameter Outside12.61 mm

Compound codeN962N

Ring Diameter Inside9.91 mm

Article GroupBB

Ring Thickness1.14 mm

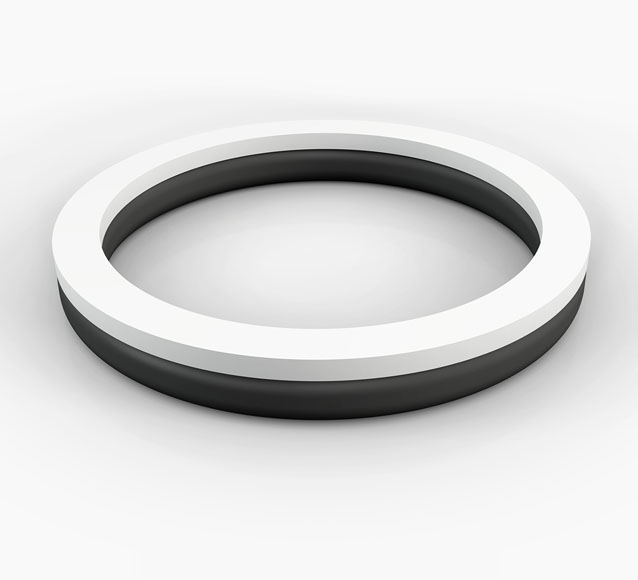

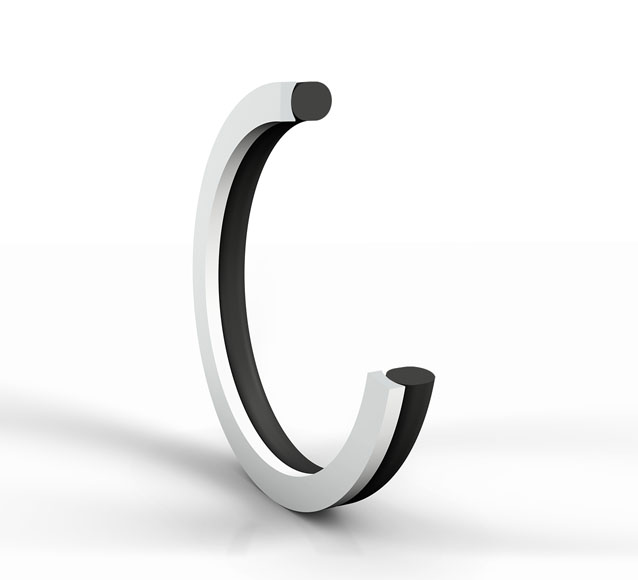

Type BB / concave, uncut

Material Information for the product(s) on this page

N962N

Specific Gravity:

1.42

Maximum Temperature:

100

Gravity Unit:

g/cm³

Minimum Temperature:

-25

Hardness Tolerance:

+/- 5

Shore A Hardness:

90+/- 5

Minimum Hardness:

90

Material:

N962N

Gravity Tolerance:

+/-0.02

Material Code Class:

Elastomer

Material Type:

NBR

Color:

Black

Maximum Hardness:

90

Hardness unit:

Shore A
