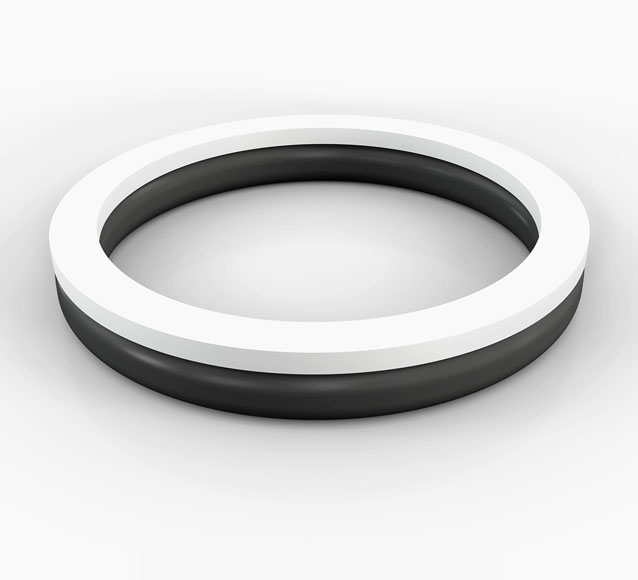

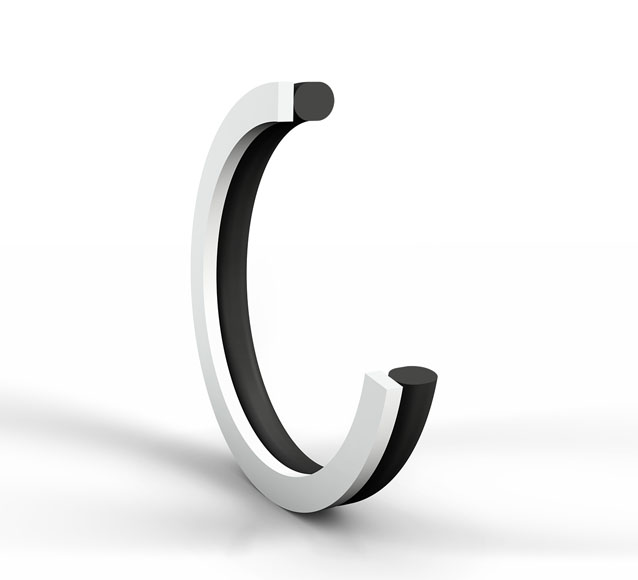

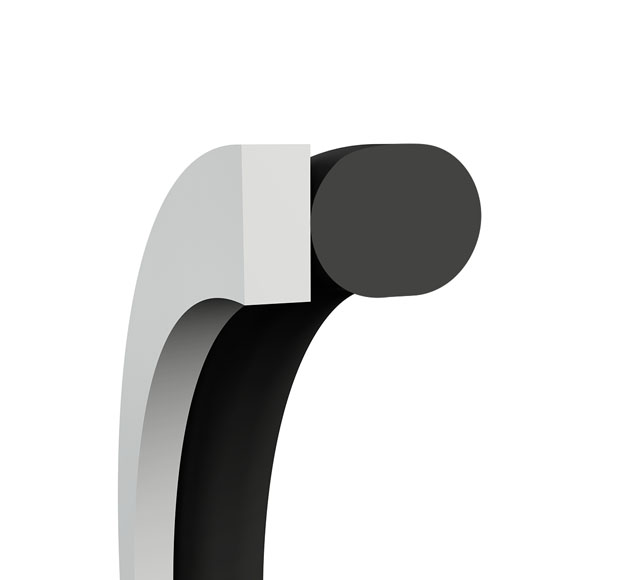

Back-up Ring Type BV / rectangular, uncut is a solid, rectangular support ring used to prevent extrusion of O-Rings and seals in high-pressure applications. Its uncut design provides maximum structural integrity, making it ideal for static sealing in demanding hydraulic and pneumatic systems. Made from durable materials like PTFE, Type BV enhances seal performance, improves pressure resistance, and extends service life.
BU Rectangular solid OD:
TSS Article Number (3 to 9)5802000
Signature StandardBV5802000-PT008
Type of Article0
Quality (10th Digit)-
Root Ring Inside Diameter188.4 mm
Ring Diameter Outside200 mm
Compound codePT008
Ring Diameter Inside188.4 mm
Root Ring Outside Diameter200 mm
Root Ring Width5.8 mm
Article GroupBV
Ring Thickness2.5 mm
Ring Width5.8 mm
Root Ring Thickness2.5 mm
Material Information for the product(s) on this page
PT008
Minimum Hardness:
55
Gravity Unit:
g/cm³
Hardness unit:
Shore D
Material Code Class:
Thermoplastic
Gravity Tolerance:
+/-0.04
Minimum Temperature:
-200
Color:
White
Shore D Hardness:
55+/- 5
Maximum Hardness:
55
Material Type:
PTFE
Maximum Temperature:
260
Specific Gravity:
2.16
Material:
PT008
Hardness Tolerance:
+/- 5
