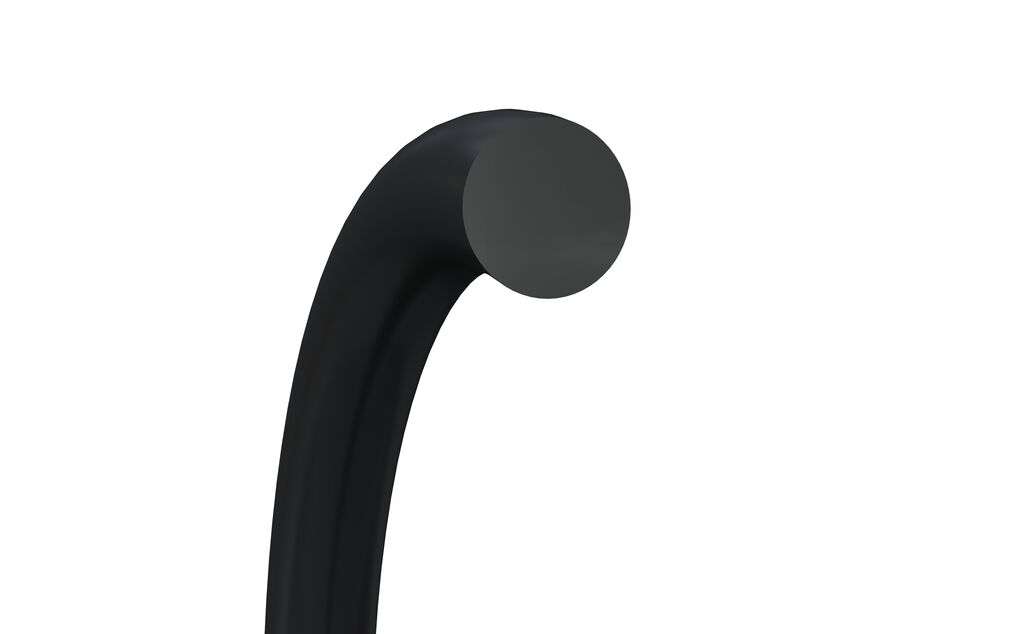

O-Rings Standard - ORAR00012-N7083
SAP Article number: 200000005533
O-Rings offer an efficient and economical sealing element for a wide range of static or dynamic applications and can be used to seal practically all liquid and gaseous media.
O-Ring/standard:
SAP Article number200000005533
Ring Diameter Inside9.25 mm
TSS Article Number (3 to 9)AR00012
Signature StandardORAR00012-N7083
Type of Article0
Root Ring Inside Diameter9.25 mm
Compound codeN7083
QCC for O-rings-
Ring Width1.78 mm
Root Ring Width1.78 mm
Article GroupOR
Material Information for the product(s) on this page
N7083
Color:
Black
Hardness unit:
Shore A
Hardness Tolerance:
+/- 5
Gravity Tolerance:
+/-0.02
Maximum Temperature:
100
Shore A Hardness:
70+/- 5
Material:
N7083
Minimum Hardness:
70
Maximum Hardness:
70
Minimum Temperature:
-30
Gravity Unit:
g/cm³
Material Type:
NBR
Specific Gravity:
1.24
Material Code Class:
Elastomer
