AQ Seal® 5 - Without O-Ring - PQ0302500-T46

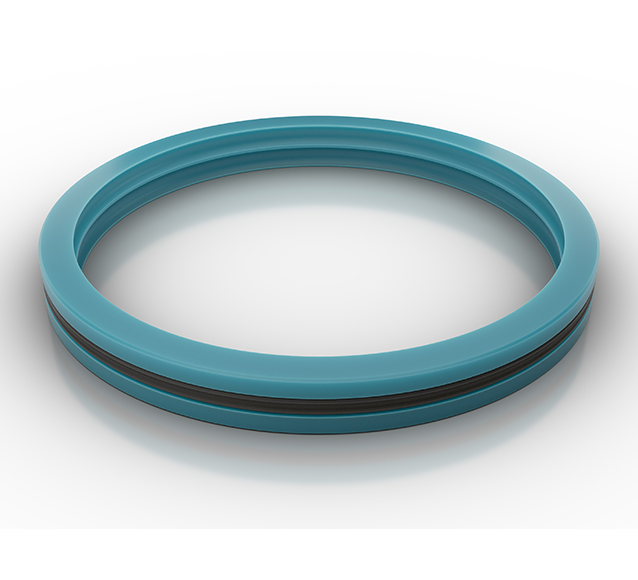

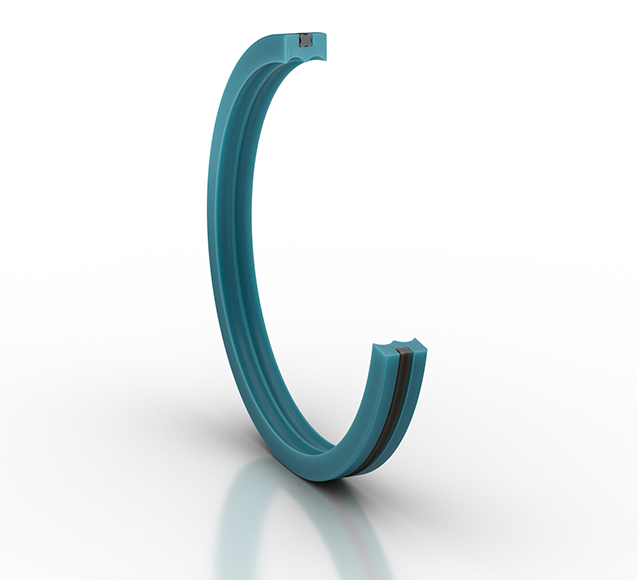

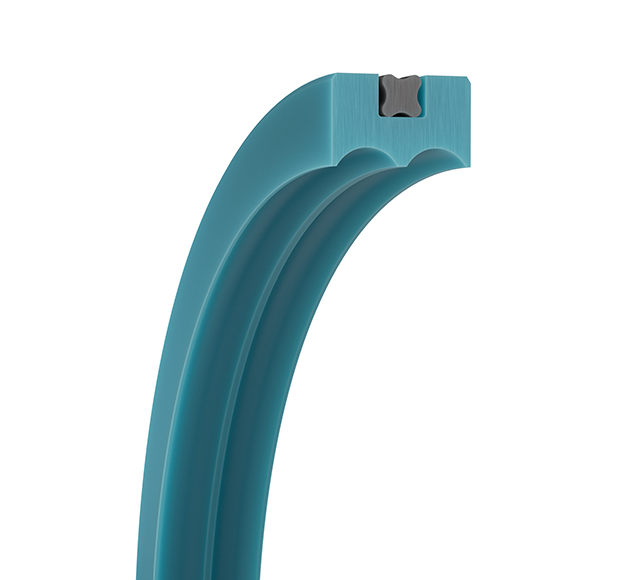

A further development of the standard AQ Seal® , the double-acting AQ Seal® 5 incorporates an elastomer Quad-Ring® / X-Ring and an elastomer or polyurethane Bean Seal in the dynamic sealing face. It is energized by two O‑Rings to improve sealing behavior. Available in Turcon® or Zurcon® materials. The O-Ring is not included with this item.
Piston/AQ-Seal®/Turcon®:
TSS Article Number (3 to 9)302500
Signature StandardPQ0302500-T46
Type of Article0
Quality (10th Digit)-

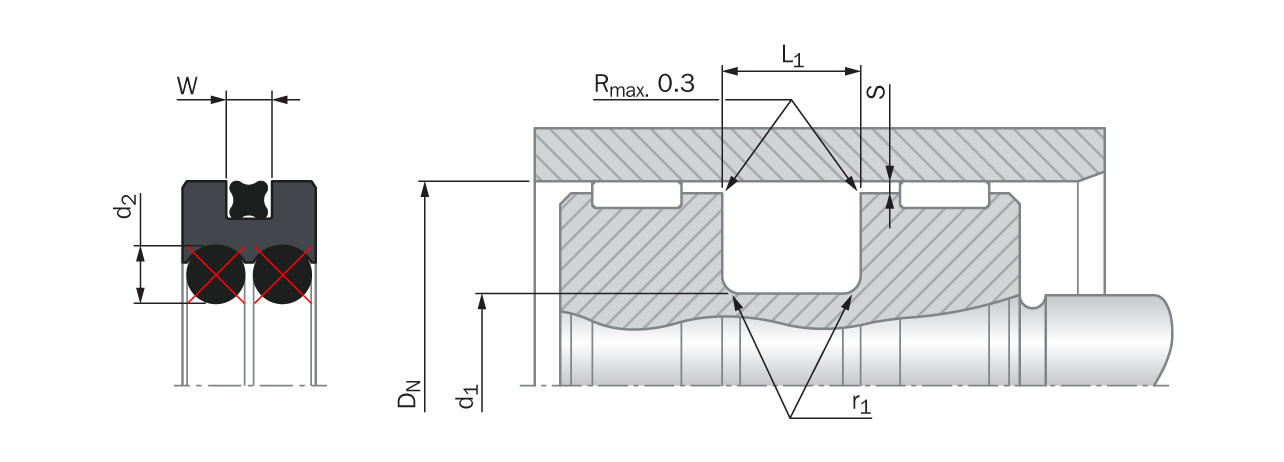

Root Groove Thickness9 mm
Root Groove Inside Diameter232 mm
Root Groove Outside Diameter250 mm
Root Ring Inside Diameter239.50 mm
Root Groove Width12.30 mm
Groove Diameter Outside250 mm
Groove Diameter Inside232 mm
Groove Thickness9 mm
Groove Width12.30 mm
Ring Length0 mm
Ring Width12 mm
Ring Thickness5.75 mm
Legacy ID from KOM2PQ0302500-T46
Root Ring Width12 mm
Root Ring Outside Diameter251 mm
Root Ring Length0 mm
Article GroupPQ
Root Ring Thickness5.75 mm
Seals Helsingor Material Class:
Seal Tube OD Tolerance From254 mm
Material Number200000058399
Seal Tube OD Tolerance Max50 mm
Seal Tube ID Tolerance Min-50 mm
Seal Tube ID Tolerance Max-3 mm
Seal Tube OD Tolerance To301 mm
Seal Tube ID Tolerance To236.50 mm
Seal Tube ID Tolerance From189.50 mm
Class Dependencies200000058399
Ring Diameter Outside251 mm
Compound codeT46
Ring Diameter Inside239.50 mm
Compound Type110
Seal Tube OD Tolerance Min3 mm
Material Information for the product(s) on this page
T46
Gravity Unit:
g/cm³
Material:
T46
Material Type:
PTFE
Material Code Class:
Thermoplastic
Maximum Temperature:
260
Minimum Temperature:
-200
Ball Hardness:
29
Color:
Greyish to Dark Brown
Gravity Tolerance:
+/-0.04
Specific Gravity:
3.07
