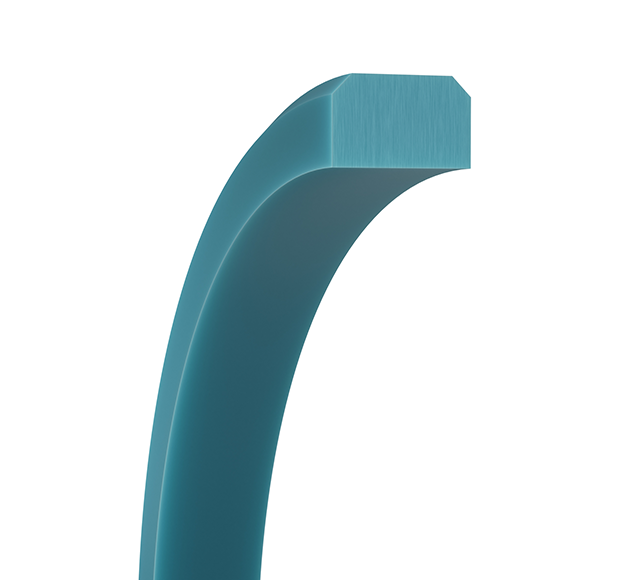

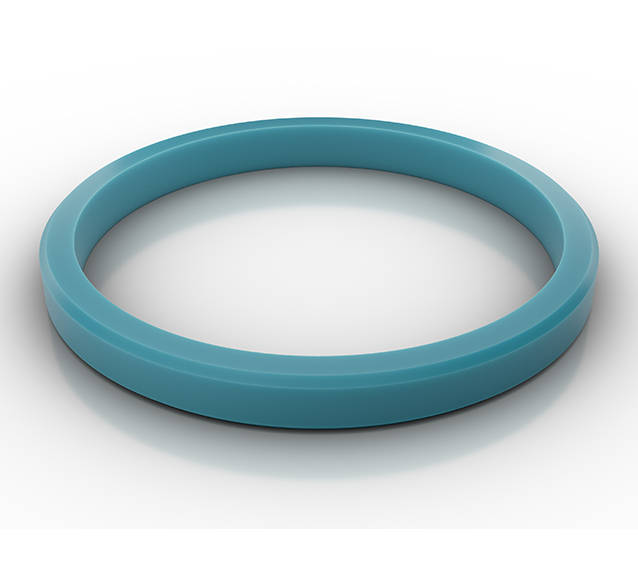

Glyd Ring® is a double-acting O-Ring energized piston seal for dynamic applications. Glyd Ring® provides low friction with no stick-slip, minimal breakout force and high wear resistance. Main application is actuator cylinders. Installed in grooves to ISO 7425. Available in Turcon® or Zurcon® materials. The O-Ring is not included with this item.
Piston/GlydRing®Turcon®:
TSS Article Number (3 to 9)4400250
Signature StandardPG4400250-Z80
Type of Article0
Quality (10th Digit)-

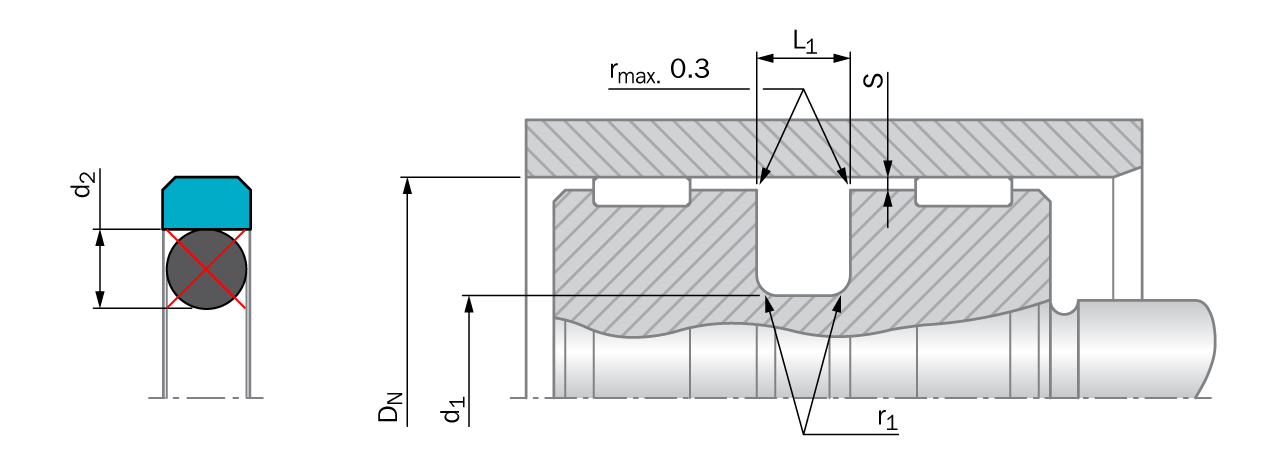

Root Groove Thickness3.75 mm
Root Groove Inside Diameter17.5 mm
Root Groove Outside Diameter25 mm
Compound codeZ80
Root Groove Width3.2 mm
Groove Diameter Outside25 mm
Groove Diameter Inside17.5 mm
Groove Thickness3.75 mm
Groove Width3.2 mm
Article GroupPG
Material Information for the product(s) on this page
Z80
Maximum Temperature:
80
Ball Hardness:
29
Material Code Class:
Thermoplastic
Material:
Z80
Gravity Tolerance:
+/-0.01
Color:
White to Offwhite
Specific Gravity:
0.93
Minimum Temperature:
-200
Material Type:
UHMW PE
Gravity Unit:
g/cm³
