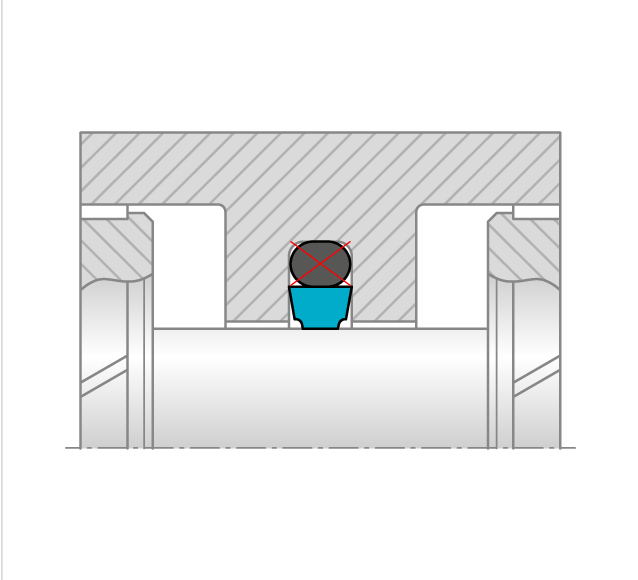

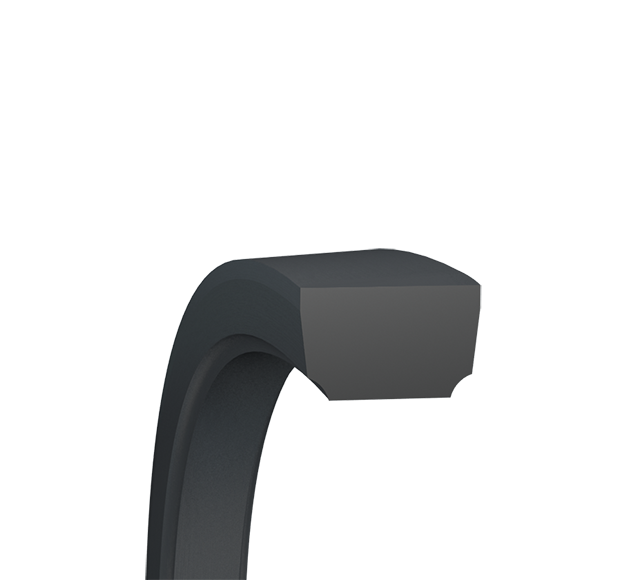

The Glyd Ring® T's benefits are provided by the innovative functional principle of the trapezoidal profile cross section. The sides of the seal profile taper towards the seal surface. The profile can thus retain the robust and compact form typical of rod seals without losing any of the flexibility required to achieve a pressure-related maximum compression. Available in Turcon® or Zurcon® materials. The O-Ring is not included with this item.
Rod/GlydRing®T/ Turcon®:
TSS Article Number (3 to 9)100200
Signature StandardRT0100200-T40
Type of Article0
Quality (10th Digit)-

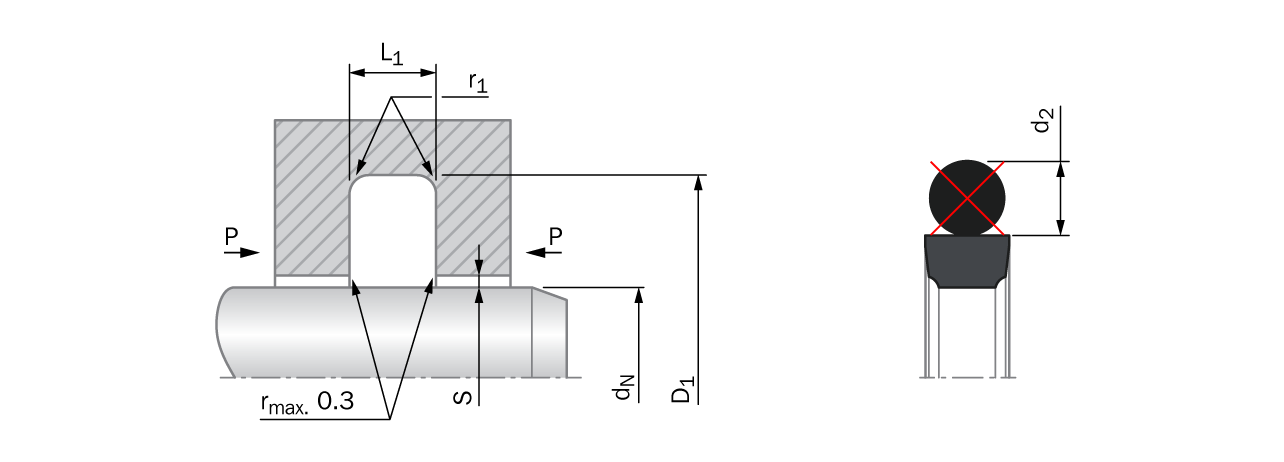

Root Groove Inside Diameter20 mm
Root Groove Thickness3.65 mm
Root Groove Outside Diameter27.3 mm
Compound codeT40
Root Groove Width3.2 mm
Groove Diameter Inside20 mm
Groove Diameter Outside27.3 mm
Groove Width3.2 mm
Groove Thickness3.65 mm
Article GroupRT
Material Information for the product(s) on this page
T40
Material:
T40
Ball Hardness:
27
Minimum Temperature:
-200
Material Type:
PTFE
Specific Gravity:
2.07
Maximum Temperature:
260
Material Code Class:
Thermoplastic
Gravity Tolerance:
+/-0.03
Gravity Unit:
g/cm³
Color:
Grey
