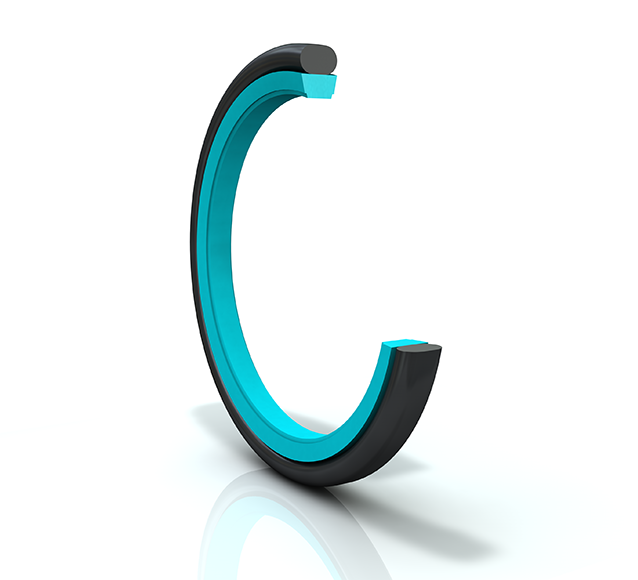

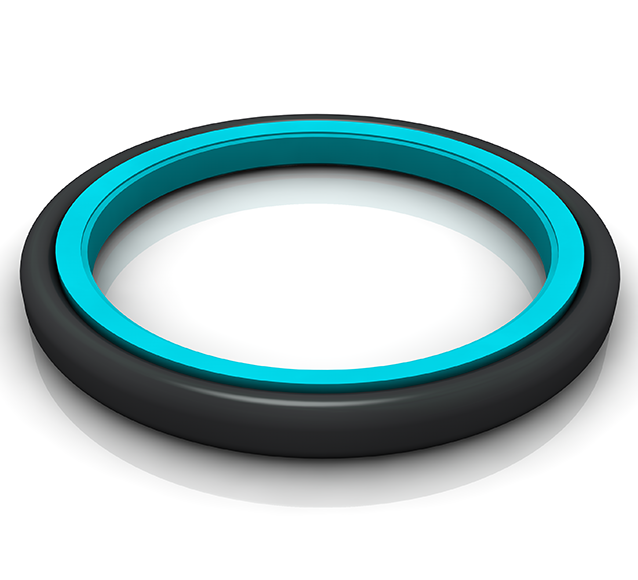

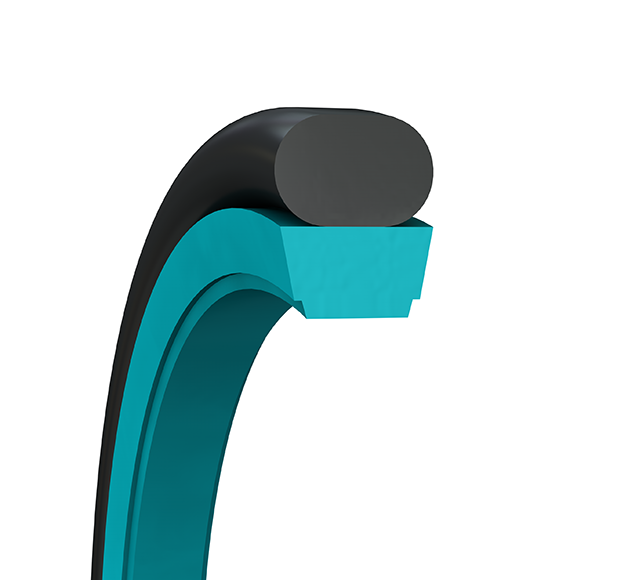

The Glyd Ring® T's benefits are provided by the innovative functional principle of the trapezoidal profile cross section. The sides of the seal profile taper towards the seal surface. The profile can thus retain the robust and compact form typical of rod seals without losing any of the flexibility required to achieve a pressure-related maximum compression. Available in Turcon® or Zurcon® materials.
Rod/GlydRing®T/ Turcon®:
TSS Article Number (3 to 9)100200
Signature StandardRT0100200-T40N
Type of Article0
Quality (10th Digit)-

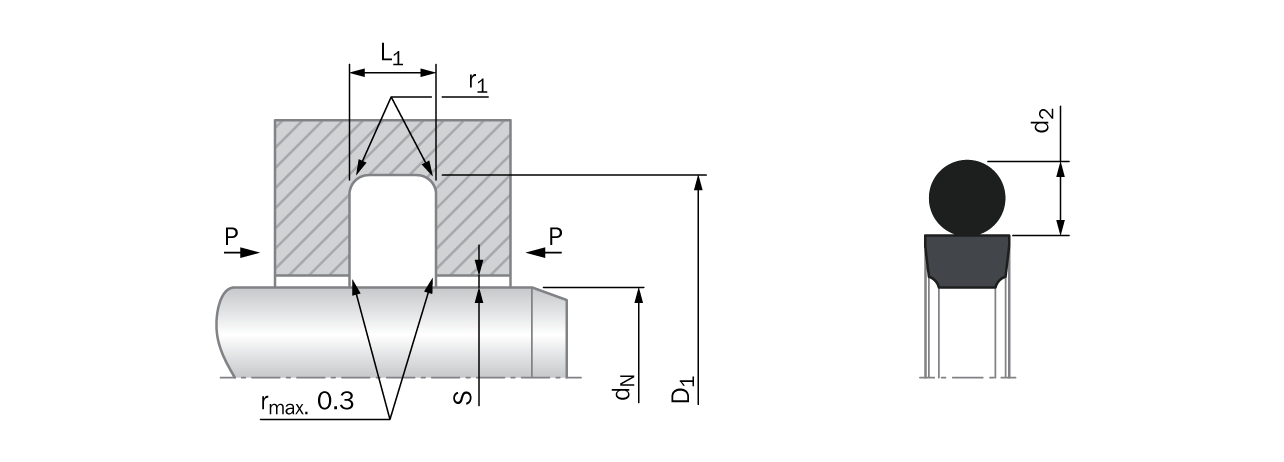

Root Groove Inside Diameter20 mm
Root Groove Thickness3.2 mm
Root Groove Outside Diameter27.3 mm
Compound codeT40N
Groove Diameter Inside20 mm
Groove Diameter Outside27.3 mm
Groove Width3.2 mm
Groove Thickness0 mm
Article GroupRT
Material Information for the product(s) on this page
N7083
Color:
Black
Hardness unit:
Shore A
Hardness Tolerance:
+/- 5
Gravity Tolerance:
+/-0.02
Maximum Temperature:
100
Shore A Hardness:
70+/- 5
Material:
N7083
Minimum Hardness:
70
Maximum Hardness:
70
Minimum Temperature:
-30
Gravity Unit:
g/cm³
Material Type:
NBR
Specific Gravity:
1.24
Material Code Class:
Elastomer
T40
Material:
T40
Ball Hardness:
27
Minimum Temperature:
-200
Material Type:
PTFE
Specific Gravity:
2.07
Maximum Temperature:
260
Material Code Class:
Thermoplastic
Gravity Tolerance:
+/-0.03
Gravity Unit:
g/cm³
Color:
Grey
