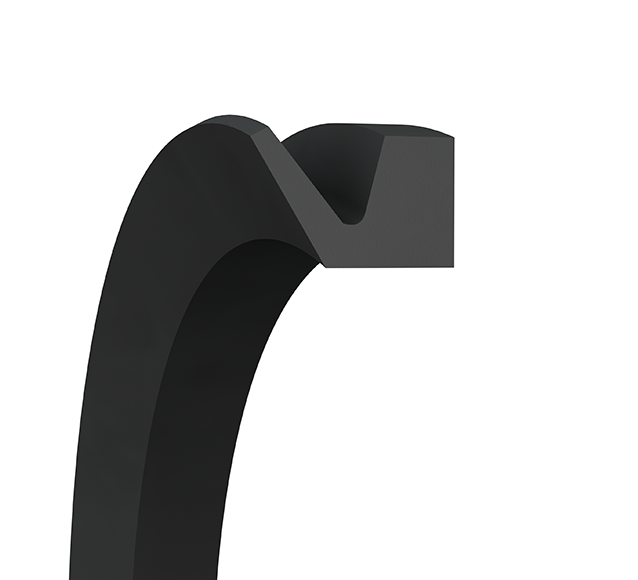

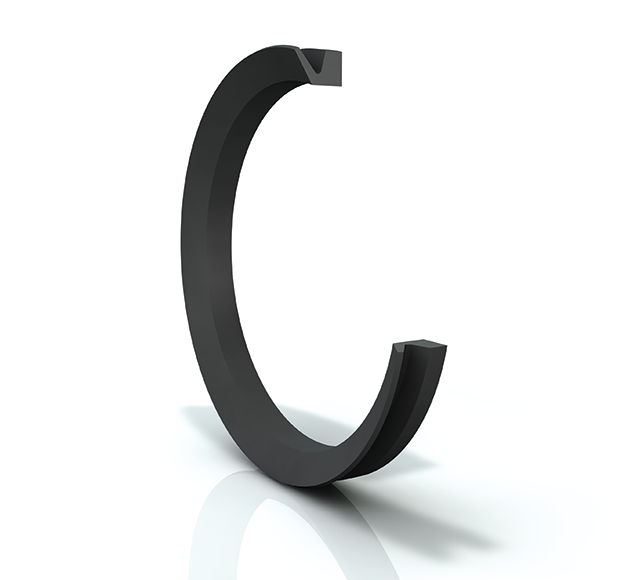

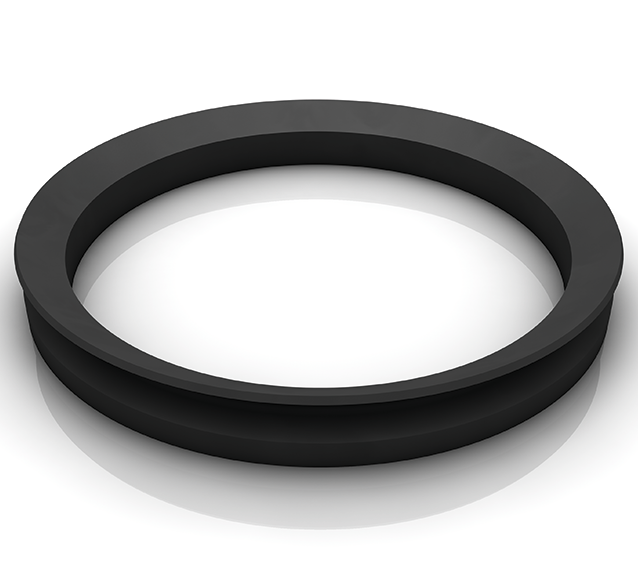

V-Ring type A is the most common and available for shaft diameters from 3 to 1000 mm. It is an all-rubber seal for rotary shafts, rotating with the shaft and sealing axially against the stationary counterface. Its light lip pressure generates low friction. It can also be used as a secondary seal to protect primary seals that do not perform well in hostile environments.
Rotary/V-Ring:

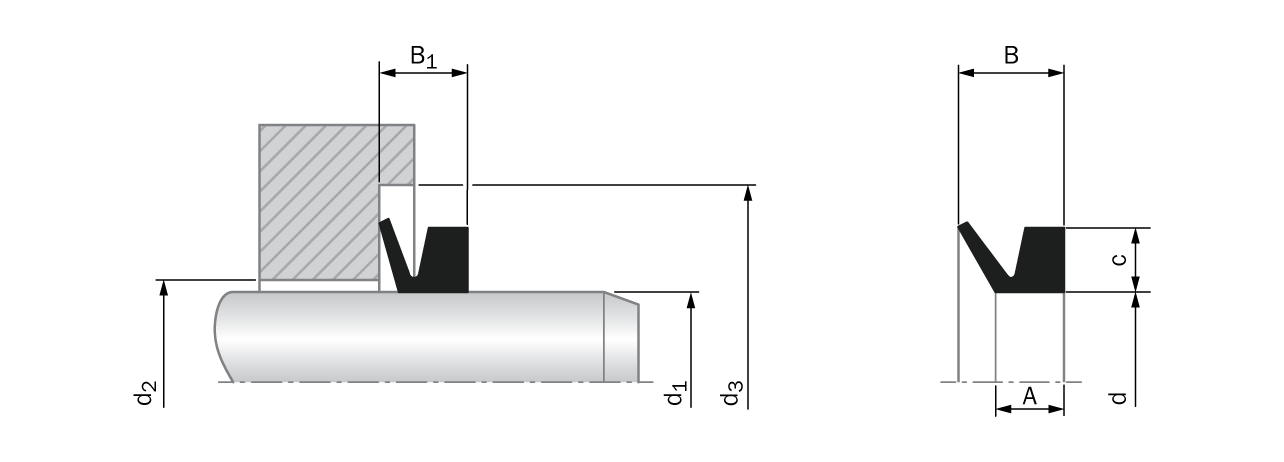

Ring Diameter Outside12.4 mm
Ring Diameter Inside5 mm
TSS Article Number (3 to 9)VA00060
Signature StandardTWVA00060-N6T50
Type of Article0
Quality (10th Digit)-
Root Ring Inside Diameter5 mm
Compound codeN6T50
Ring Thickness2 mm
Ring Width3.7 mm
Root Ring Width3.7 mm
Root Ring Outside Diameter12.4 mm
Article GroupTW
Root Ring Thickness2 mm
Material Information for the product(s) on this page
N6T50
Material:
N6T50
Gravity Unit:
g/cm³
Maximum Temperature:
100
Material Code Class:
Elastomer
Hardness Tolerance:
+/- 5
Minimum Temperature:
-40
Shore A Hardness:
60+/- 5
Specific Gravity:
1.15
Material Type:
NBR
Maximum Hardness:
60
Color:
Black
Minimum Hardness:
60
Hardness unit:
Shore A
Gravity Tolerance:
+/-0.03
