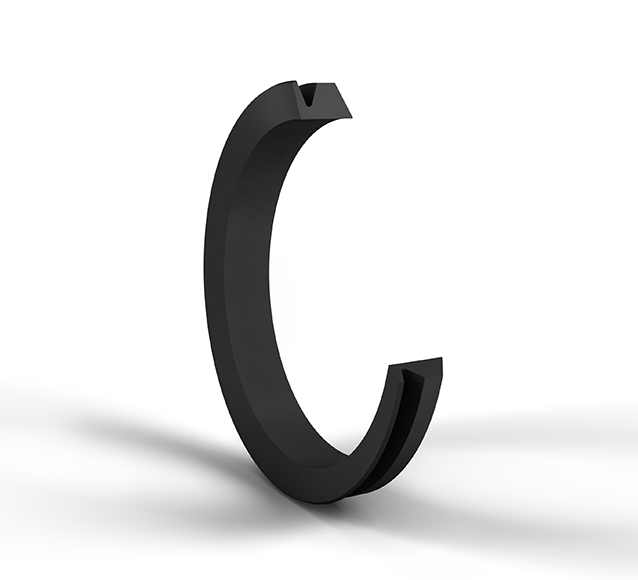

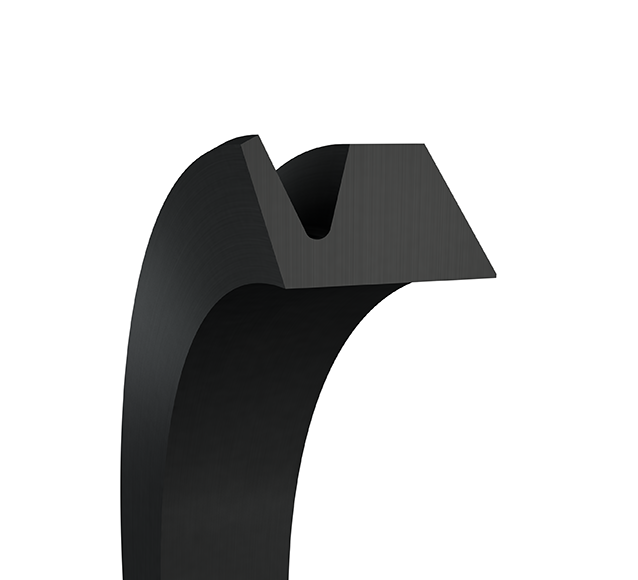

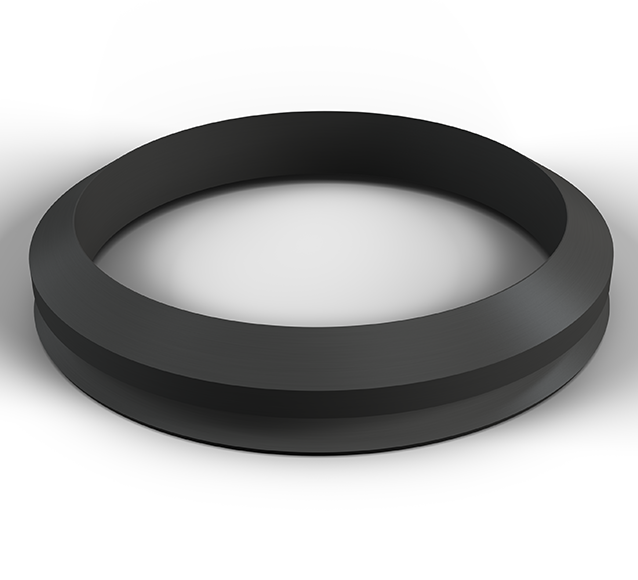

V-Ring type S is wide and tapered, which provides a very firm hold on the shaft. The rings are available for shaft diameters from 5 to 199 mm. It is an all-rubber seal for rotary shafts, rotating with the shaft and sealing axially against the stationary counterface. Its light lip pressure generates low friction. It can also be used as a secondary seal to protect primary seals that do not perform well in hostile environments.
Rotary/V-Ring:

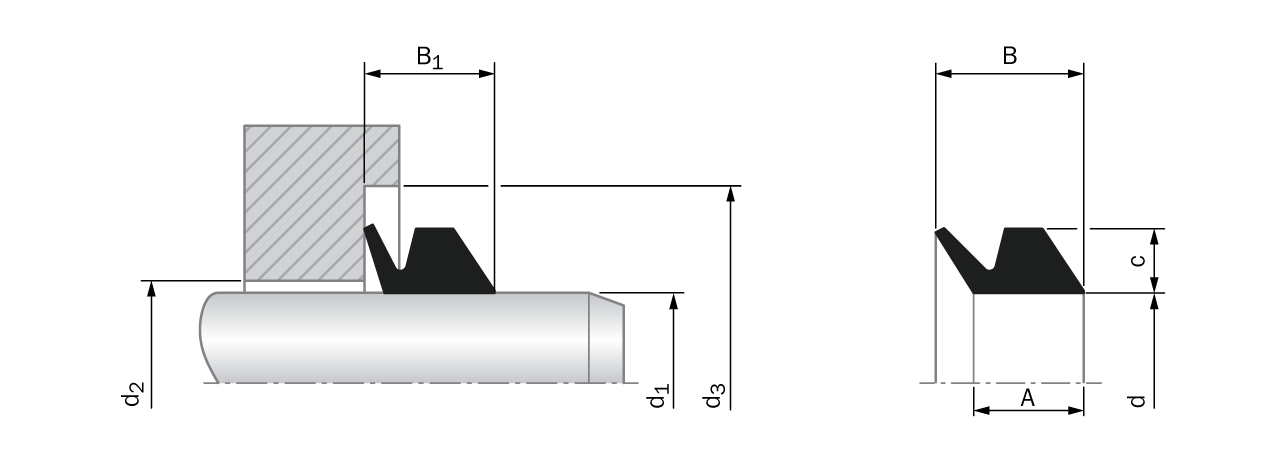

Ring Diameter Outside17.4 mm
Ring Diameter Inside7 mm
TSS Article Number (3 to 9)VS00080
Signature StandardTWVS00080-N6T50
Type of Article0
Quality (10th Digit)-
Root Ring Inside Diameter7 mm
Compound codeN6T50
Ring Thickness2 mm
Ring Width5.2 mm
Root Ring Width5.2 mm
Root Ring Outside Diameter17.4 mm
Article GroupTW
Root Ring Thickness2 mm
Material Information for the product(s) on this page
N6T50
Material:
N6T50
Gravity Unit:
g/cm³
Maximum Temperature:
100
Material Code Class:
Elastomer
Hardness Tolerance:
+/- 5
Minimum Temperature:
-40
Shore A Hardness:
60+/- 5
Specific Gravity:
1.15
Material Type:
NBR
Maximum Hardness:
60
Color:
Black
Minimum Hardness:
60
Hardness unit:
Shore A
Gravity Tolerance:
+/-0.03
