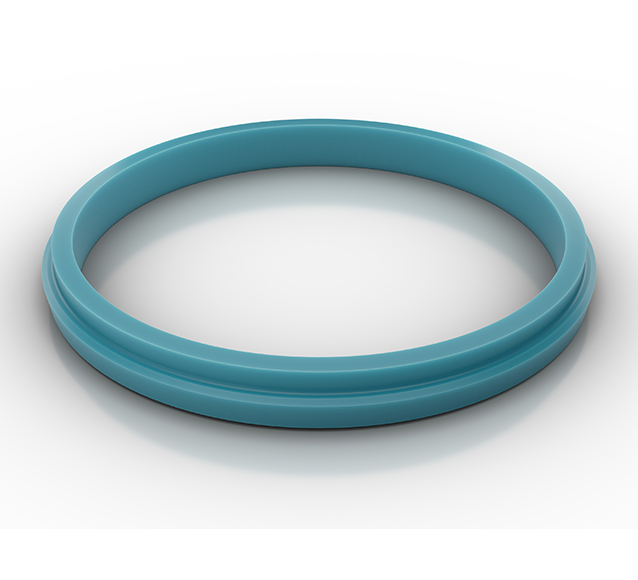

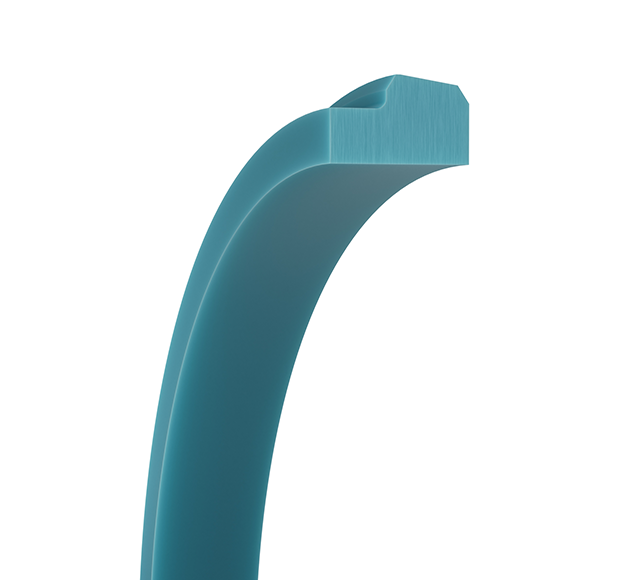

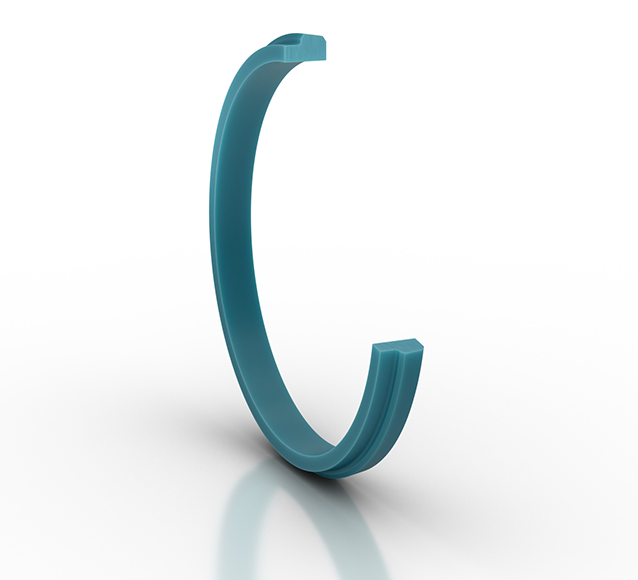

The Stepseal® K, comes closest in satisfying the ideal demands of a dynamic seal. That is, no leakage under all dynamic conditions and completely leaktight when the system is static. In use for several decades, this seal remains a technically outstanding design. The single-acting sealing element is made of high-grade PTFE materials with superior sliding and wear resistance properties. A full range of sizes are offered to suit all MIL-G-5514F and Trelleborg Sealing Solutions standards using an O-Ring as the energizing element. Available in Turcon® or Zurcon® materials. The O-Ring is not included with this item.
Piston/Stepseal®/Turcon®:
TSS Article Number (3 to 9)1400120
Signature StandardPS1400120-T46
Type of Article0
Quality (10th Digit)-

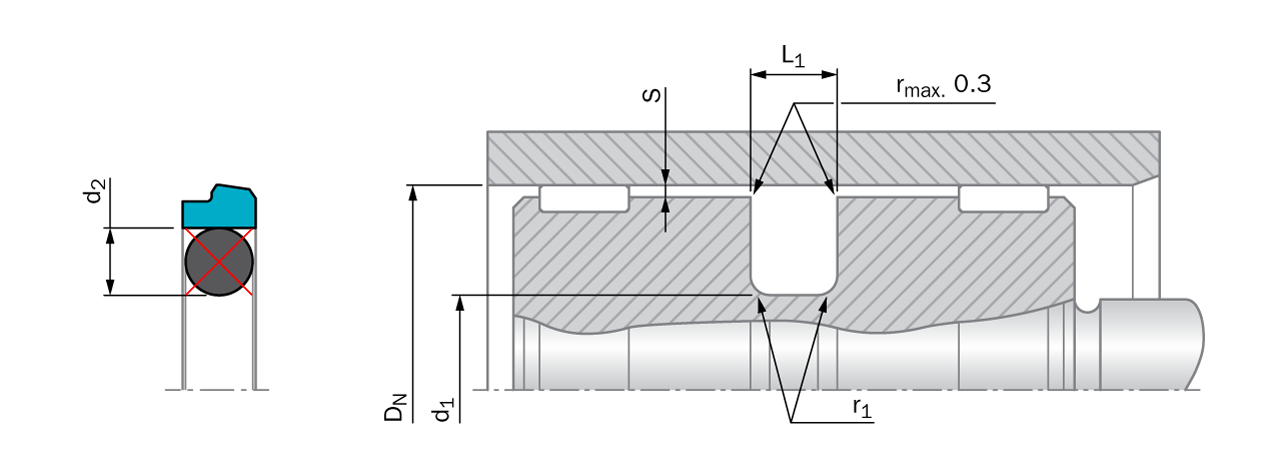

Root Groove Thickness2.45 mm
Root Groove Inside Diameter7.1 mm
Root Groove Outside Diameter12 mm
Compound codeT46
Root Groove Width2.2 mm
Groove Diameter Outside12 mm
Groove Width2.2 mm
Groove Diameter Inside7.1 mm
Groove Thickness2.45 mm
Article GroupPS
Material Information for the product(s) on this page
T46
Gravity Unit:
g/cm³
Material:
T46
Material Type:
PTFE
Material Code Class:
Thermoplastic
Maximum Temperature:
260
Minimum Temperature:
-200
Ball Hardness:
29
Color:
Greyish to Dark Brown
Gravity Tolerance:
+/-0.04
Specific Gravity:
3.07
