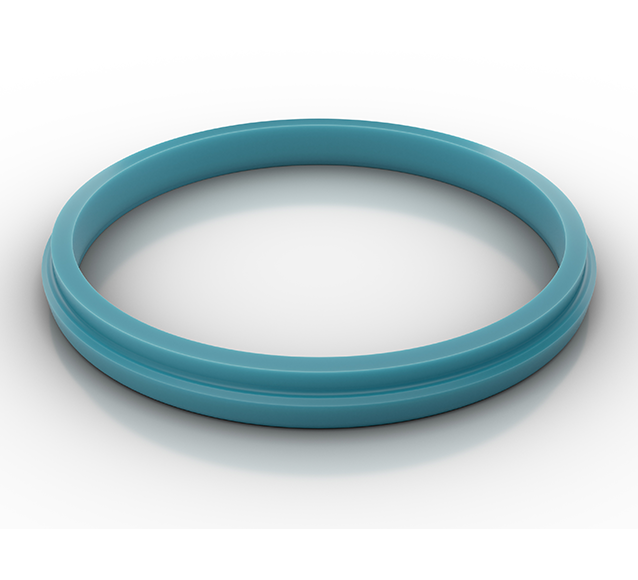

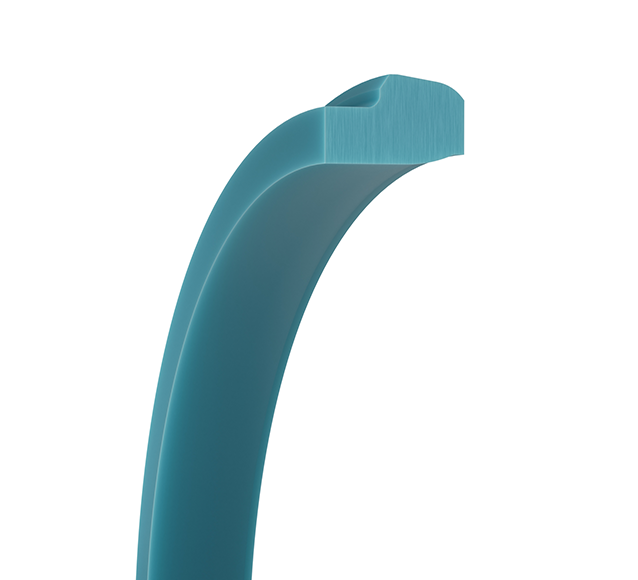

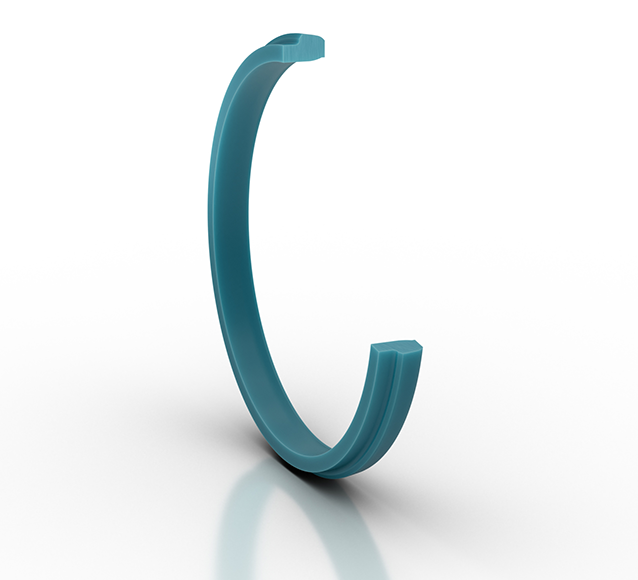

Stepseal® 2K was originally developed and patented by Trelleborg Sealing Solutions as a rod seal. Due to its outstanding properties it is well suited as a single-acting piston seal where high demands are made on positional accuracy and free movement. Available in Turcon® or Zurcon® materials. The O-Ring is not included with this item.
Piston/Stepseal®/Turcon®:
TSS Article Number (3 to 9)K301000
Signature StandardPSK301000-T46
Type of Article0
Quality (10th Digit)-

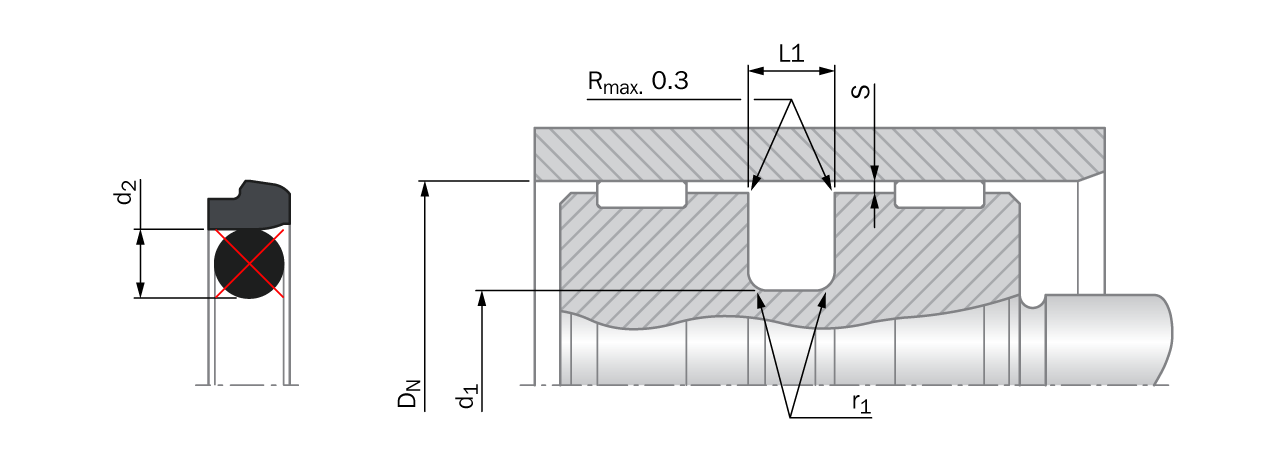

Root Groove Thickness7.55 mm
Root Groove Inside Diameter84.9 mm
Root Groove Outside Diameter100 mm
Root Ring Inside Diameter93.85 mm
Root Groove Width6.3 mm
Ring Length0 mm
Groove Diameter Outside100 mm
Groove Width6.3 mm
Groove Diameter Inside84.9 mm
Groove Thickness7.55 mm
Ring Thickness3.45 mm
Legacy ID from KOM2PSK301000-T46
Root Ring Width5.9 mm
Root Ring Outside Diameter100.75 mm
Root Ring Length0 mm
Ring Width5.9 mm
Article GroupPS
Root Ring Thickness3.45 mm
Seals Helsingor Material Class:
Seal Tube OD Tolerance From102.75 mm
Material Number200000024181
Seal Tube OD Tolerance Max50 mm
Seal Tube ID Tolerance Min-50 mm
Seal Tube ID Tolerance Max-2 mm
Seal Tube OD Tolerance To150.75 mm
Seal Tube ID Tolerance To91.85 mm
Seal Tube ID Tolerance From43.85 mm
Class Dependencies200000024181
Ring Diameter Outside100.75 mm
Compound codeT46
Ring Diameter Inside93.85 mm
Compound Type110
Seal Tube OD Tolerance Min2 mm
Material Information for the product(s) on this page
T46
Gravity Unit:
g/cm³
Material:
T46
Material Type:
PTFE
Material Code Class:
Thermoplastic
Maximum Temperature:
260
Minimum Temperature:
-200
Ball Hardness:
29
Color:
Greyish to Dark Brown
Gravity Tolerance:
+/-0.04
Specific Gravity:
3.07
