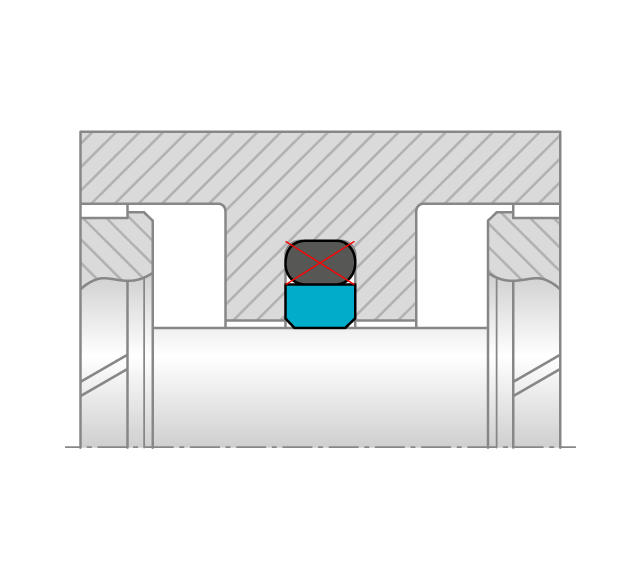

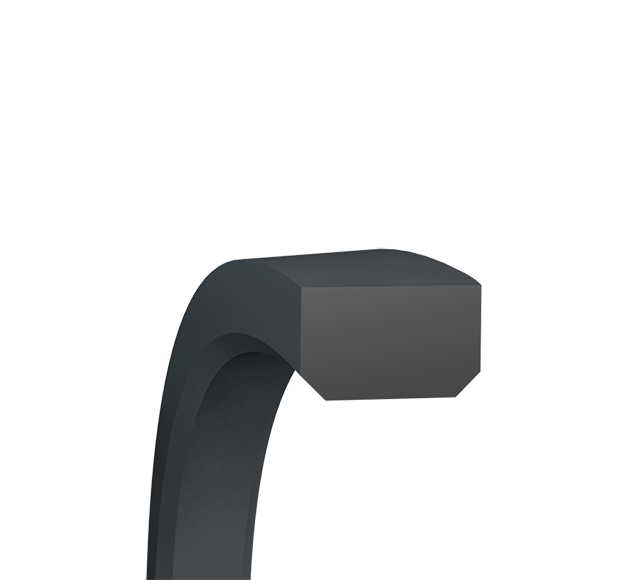

Glyd Ring® is a double-acting O-Ring energized rod seal for dynamic applications. Glyd Ring® provides low friction with no stick-slip, minimal breakout force and high wear resistance. Main application is actuator cylinders. Installed in grooves to ISO 7425. Available in Turcon® or Zurcon® materials. The O-Ring is not included with this item.
Rod/GlydRing®/Turcon®:
TSS Article Number (3 to 9)580D010
Signature StandardRG580D010-T40
Type of Article0
Quality (10th Digit)-

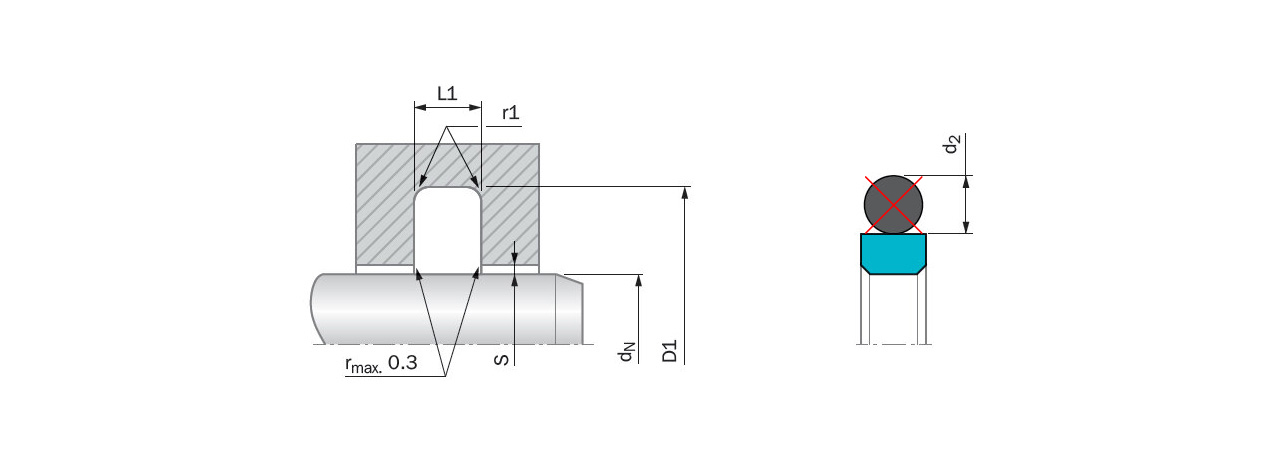

Root Groove Inside Diameter12 mm
Root Groove Outside Diameter18 mm
Compound codeT40
Root Groove Width2.85 mm
Groove Diameter Inside12 mm
Groove Diameter Outside18 mm
Groove Width2.85 mm
Groove Thickness3 mm
Article GroupRG
Material Information for the product(s) on this page
T40
Material:
T40
Ball Hardness:
27
Minimum Temperature:
-200
Material Type:
PTFE
Specific Gravity:
2.07
Maximum Temperature:
260
Material Code Class:
Thermoplastic
Gravity Tolerance:
+/-0.03
Gravity Unit:
g/cm³
Color:
Grey
