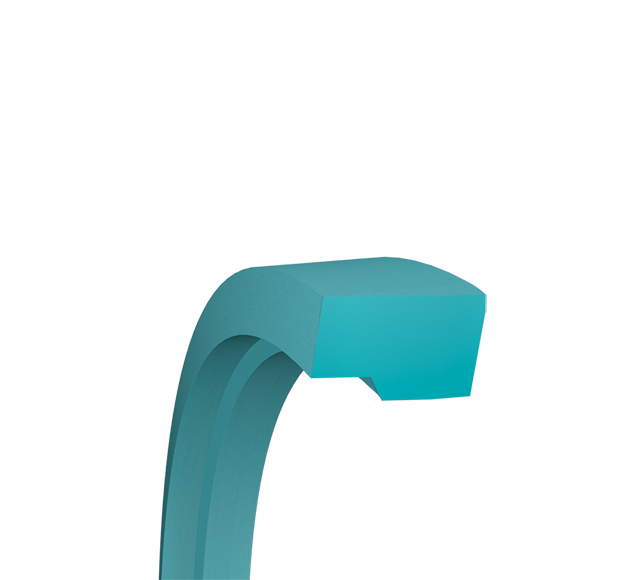

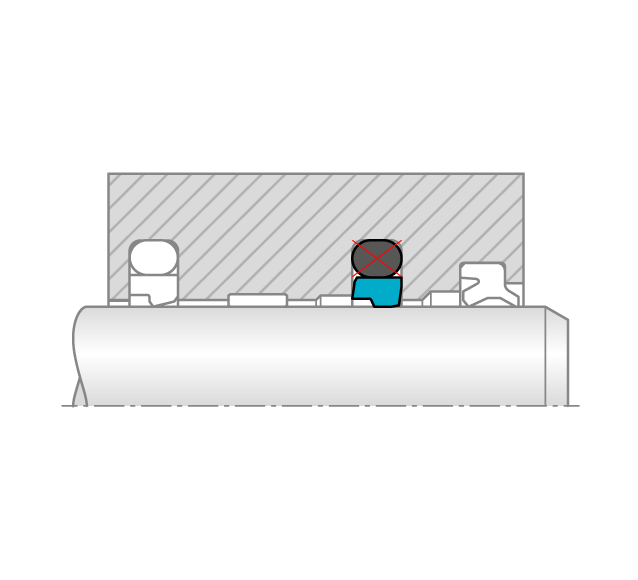

Zurcon® Rimseal is a single-acting rod seal energized by an elastomer O-Ring and it has a high static and dynamic tightness. The installation spaces are identical to those used for the Stepseal® 2K, making the Zurcon® Rimseal an ideal secondary system element. The main application fields are rod seals with redundant sealing systems and double wipers in mobile hydraulics, machine tools, injection molding machines and in general machine construction. The O-Ring is not included with this item.
Rod/Rimseal/Zurcon®:
TSS Article Number (3 to 9)1300950
Signature StandardRR1300950-Z53
Type of Article0
Quality (10th Digit)-

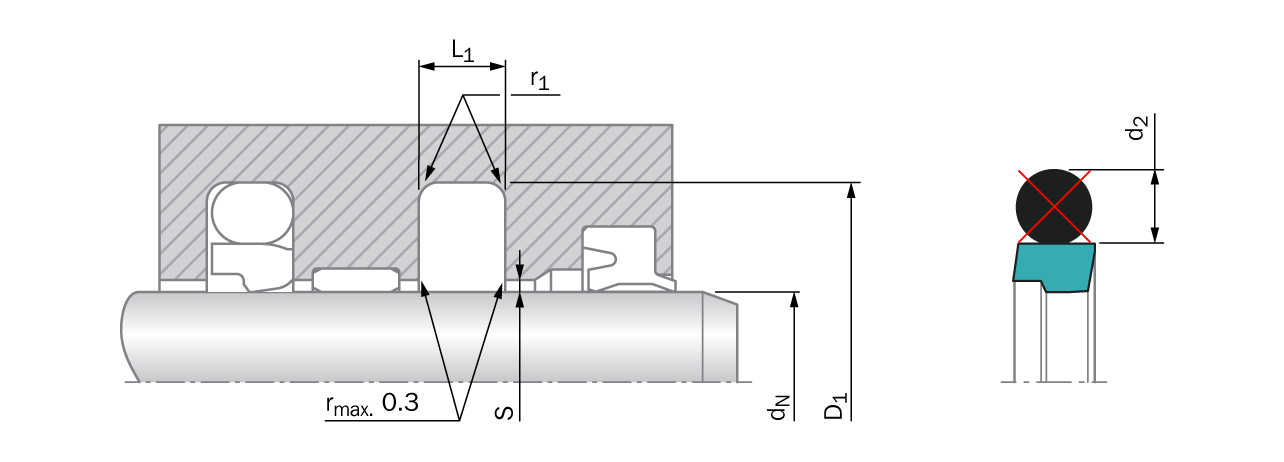

Root Groove Inside Diameter95 mm
Root Groove Thickness7.55 mm
Root Groove Outside Diameter110.1 mm
Root Ring Inside Diameter95.05 mm
Root Groove Width6.3 mm
Ring Length0 mm
Groove Diameter Inside95 mm
Groove Diameter Outside110.1 mm
Groove Width6.3 mm
Groove Thickness7.55 mm
Ring Thickness6 mm
Ring Width3.3 mm
Legacy ID from KOM2RR1300950-Z53
Root Ring Width3.3 mm
Root Ring Outside Diameter101.65 mm
Root Ring Length0 mm
Article GroupRR
Root Ring Thickness6 mm
Seals Helsingor Material Class:
Seal Tube OD Tolerance From103.65 mm
Material Number200000050634
Seal Tube OD Tolerance Max50 mm
Seal Tube ID Tolerance Min-50 mm
Seal Tube ID Tolerance Max-2 mm
Seal Tube OD Tolerance To151.65 mm
Seal Tube ID Tolerance To93.05 mm
Seal Tube ID Tolerance From45.05 mm
Class Dependencies200000050634
Ring Diameter Outside101.65 mm
Compound codeZ53
Ring Diameter Inside95.05 mm
Compound Type110
Seal Tube OD Tolerance Min2 mm
Material Information for the product(s) on this page
Z53
Shore D Hardness:
70+/- 6
Hardness unit:
Shore D
Material:
Z53
Material Type:
PUR
Material Code Class:
Thermoplastic
Gravity Tolerance:
+/-0.02
Gravity Unit:
g/cm³
Minimum Temperature:
-45
Maximum Hardness:
70
Color:
Yellow to Light-Brown
Specific Gravity:
1.18
Minimum Hardness:
70
Hardness Tolerance:
+/- 6
Maximum Temperature:
110
