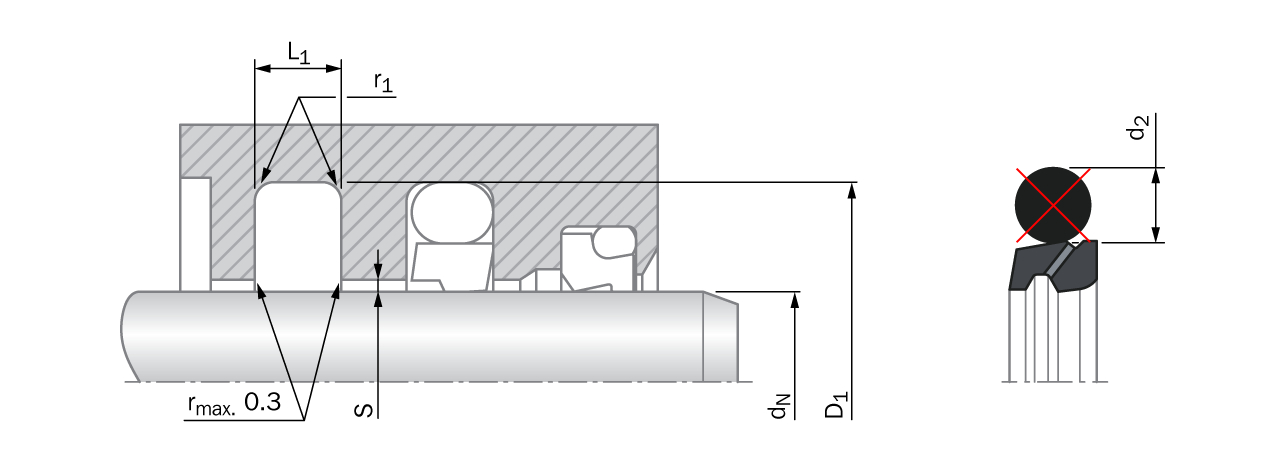

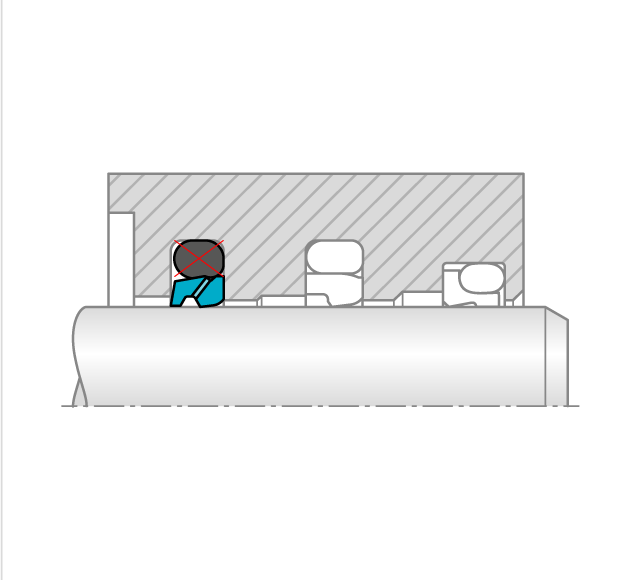

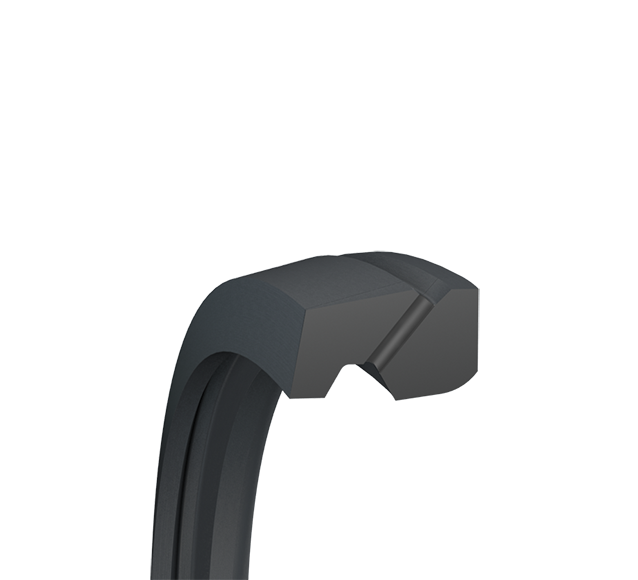

A single-acting O-Ring energized rod seal with hydrostatic pressure relief channel for dynamic applications. It prevents pressure trapping between seals under all service conditions. Installed in closed grooves, including grooves to ISO 7425, Stepseal® V offers high sealing efficiency. It also has low friction with no stick-slip, minimal breakout force and high wear resistance. Available in Turcon® or Zurcon® materials. The O-Ring is not included with this item.
Seals Helsingor Material Class:
Seal Tube OD Tolerance From67.3 mm
Material Number200000050978
Seal Tube OD Tolerance Max16 mm
Seal Tube ID Tolerance Min-16 mm
Seal Tube ID Tolerance Max-1.3 mm
Seal Tube OD Tolerance To82 mm
Seal Tube ID Tolerance To57.8 mm
Seal Tube ID Tolerance From43.1 mm
Class Dependencies200000050978
Ring Diameter Outside66 mm
Compound codeT46
Ring Diameter Inside59.1 mm
Compound Type110
Seal Tube OD Tolerance Min1.3 mm
Material Information for the product(s) on this page
T46
Gravity Unit:
g/cm³
Material:
T46
Material Type:
PTFE
Material Code Class:
Thermoplastic
Maximum Temperature:
260
Minimum Temperature:
-200
Ball Hardness:
29
Color:
Greyish to Dark Brown
Gravity Tolerance:
+/-0.04
Specific Gravity:
3.07
