RVC200320-T40S

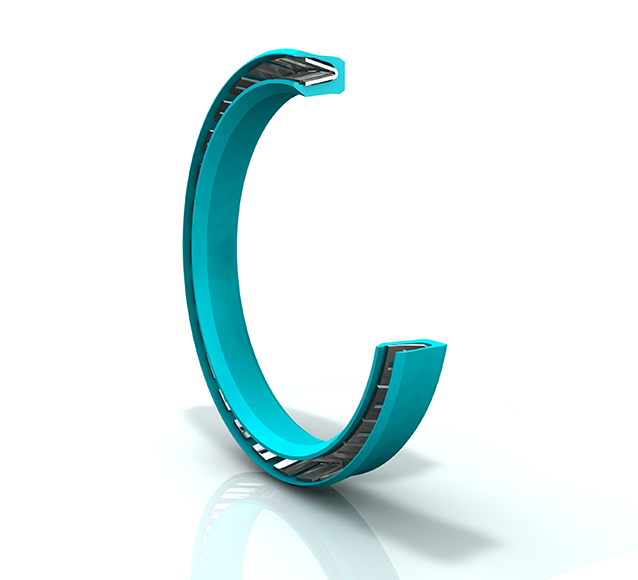

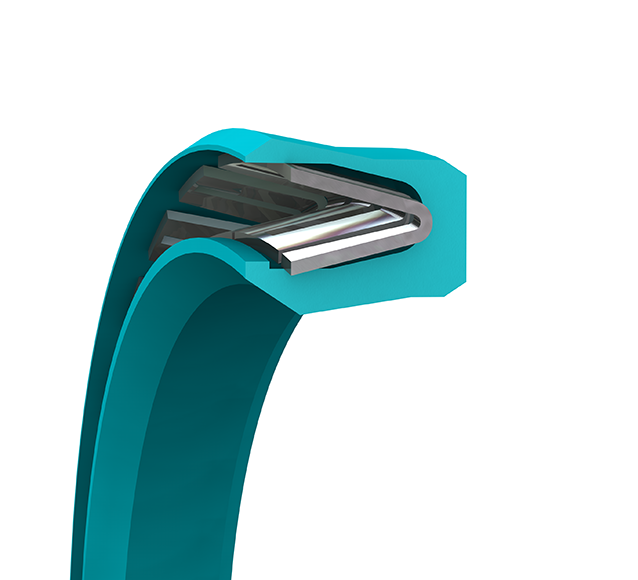

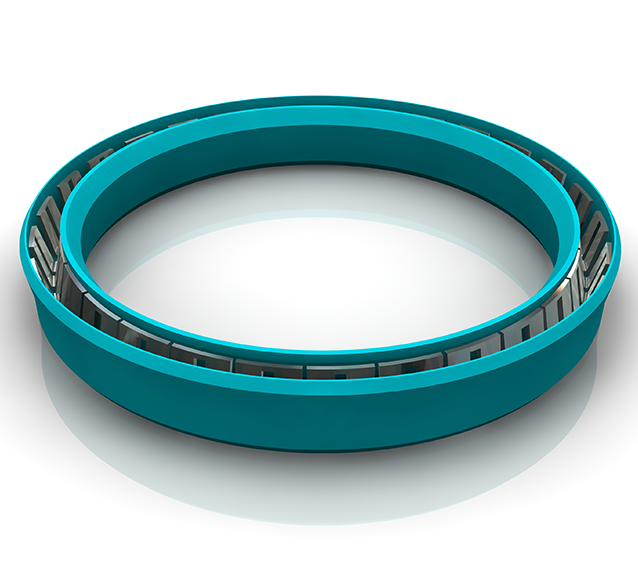

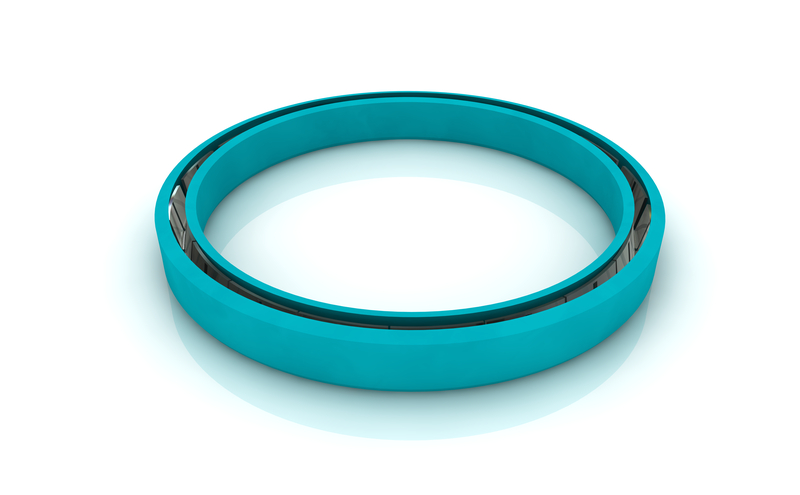

A single-acting sealing element comprised of a U-shaped PTFE ring and metallic energizing finger spring. It offers low friction with no stick-slip, minimal breakout force and high wear resistance. Effective as a scraper and resistant to most liquids and chemicals. Available in Turcon® or Zurcon® materials.

Rod/Variseal®:

TSS Article Number (3 to 9)C200320

Signature StandardRVC200320-T40S

Type of Article0

Quality (10th Digit)-

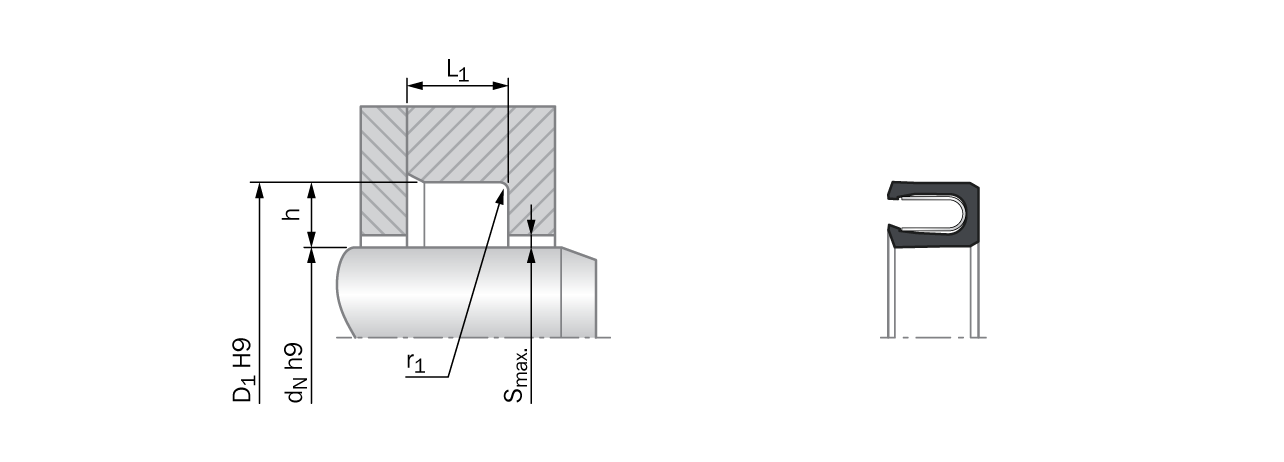

Root Groove Inside Diameter32 mm

Root Groove Outside Diameter38.2 mm

Compound codeT40S

Root Groove Width4.8 mm

Groove Diameter Inside32 mm

Groove Diameter Outside38.2 mm

Groove Width4.8 mm

Groove Thickness3.1 mm

Article GroupRV

Material Information for the product(s) on this page

T40

T40

Material:

T40

Ball Hardness:

27

Minimum Temperature:

-200

Material Type:

PTFE

Specific Gravity:

2.07

Maximum Temperature:

260

Material Code Class:

Thermoplastic

Gravity Tolerance:

+/-0.03

Gravity Unit:

g/cm³

Color:

Grey
