Variseal® is available in a range of geometries and designs that allow the optimum profile to be selected for each application. They can be produced from a wide range of Turcon® & Zurcon® materials, our proprietary PTFE-based compounds. These are specially formulated for sealing elements and offer superior characteristics specifically matched to the demands of our customers.

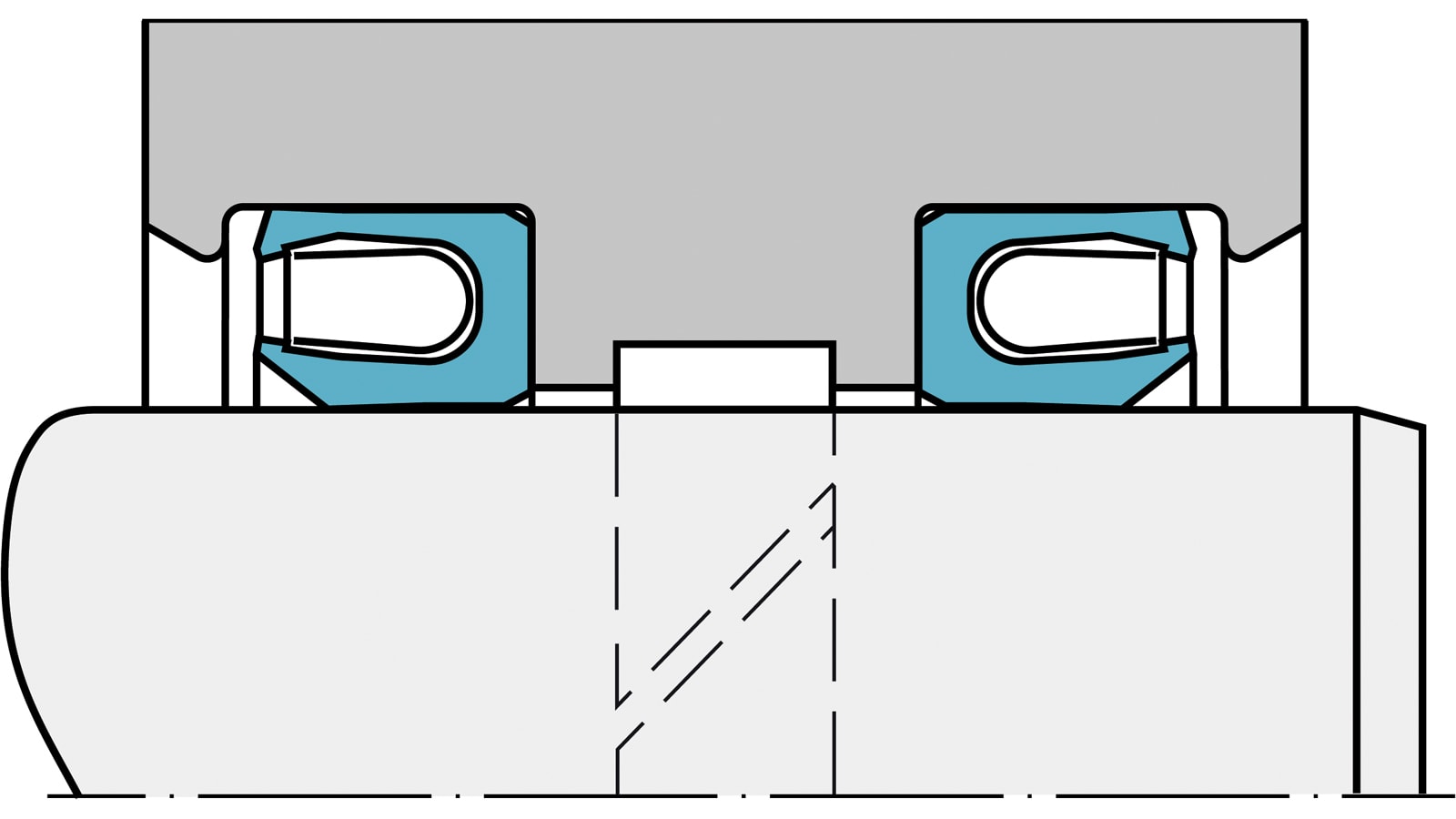

Rod/Variseal®:
TSS Article Number (3 to 9)N300300
Signature StandardRVN300300-T24S
Type of Article0
Quality (10th Digit)-
Root Groove Inside Diameter30 mm
Root Groove Outside Diameter36.2 mm
Compound codeT24S
Root Groove Width5.7 mm
Groove Diameter Inside30 mm
Groove Diameter Outside36.2 mm
Groove Width5.7 mm
Groove Thickness3.1 mm
Article GroupRV
Material Information for the product(s) on this page
T24
Material Code Class:
Thermoplastic
Minimum Temperature:
-200
Maximum Temperature:
260
Specific Gravity:
2.11
Ball Hardness:
28
Gravity Tolerance:
+/-0.02
Material Type:
PTFE
Material:
T24
Gravity Unit:
g/cm³
Color:
Black
