TC50A0320-4N063

SAP Article number: 200000124872

product image thumbnail

Please login to see the prices

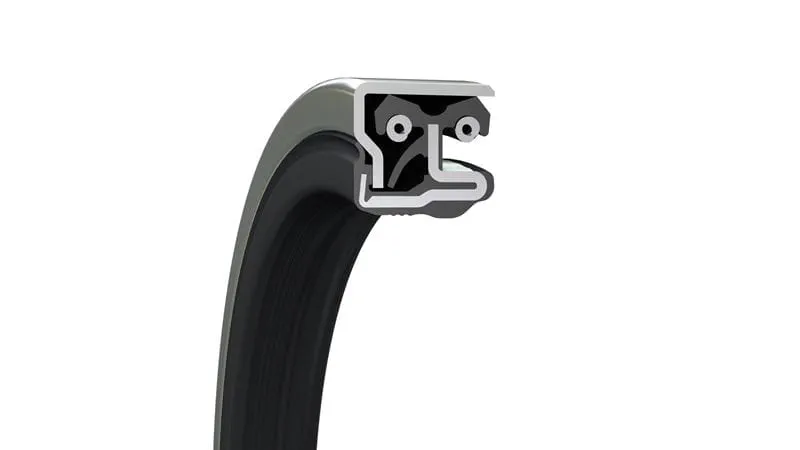

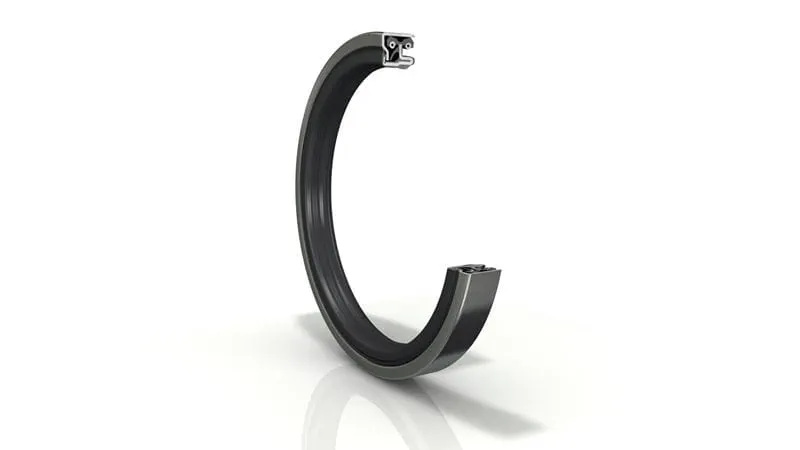

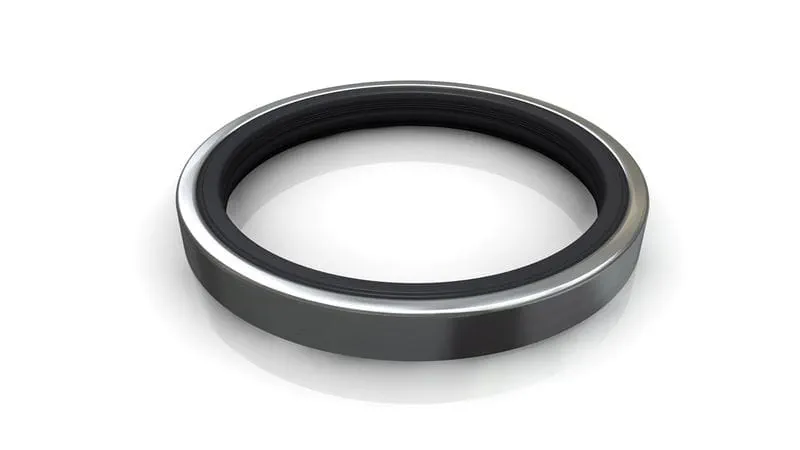

Cassette Seal systems have a completely enclosed seal providing the functions of oil seal, wear sleeve and dust protection in one unit. It has been developed to meet the ever increasing requirements of long service life, high functional reliability, environmental safety and easy installation. All these Cassette Seals are used in heavy duty vehicle axles, hubs and industrial gearboxes.

Rotary/Cassette seal:

SAP Article number200000124872

TSS Article Number (3 to 9)50A0320

Signature StandardTC50A0320-4N063

Quality (10th Digit)-

Compound code4N063

Groove Diameter Outside360 mm

Groove Diameter Inside320 mm

Groove Thickness19 mm

Article GroupTC

Stefa System 500 (Cassette Seal)

Material Information for the product(s) on this page

NCT52

Hardness Tolerance:

+/- 5

Gravity Tolerance:

+/-0.03

Minimum Temperature:

-30

Specific Gravity:

1.33

Gravity Unit:

g/cm³

Maximum Hardness:

75

Hardness unit:

Shore A

Color:

Black

Minimum Hardness:

75

Maximum Temperature:

100

Material:

NCT52

Shore A Hardness:

75+/- 5

Material Type:

NBR

Material Code Class:

Elastomer
