TG5200320-Z80

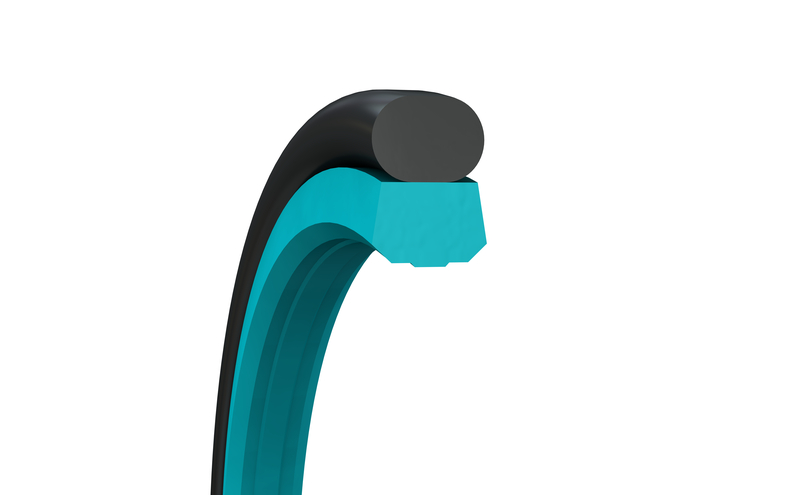

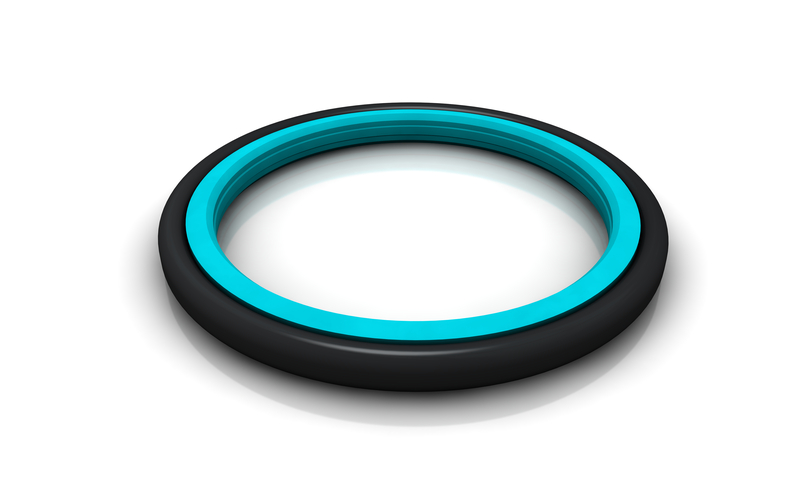

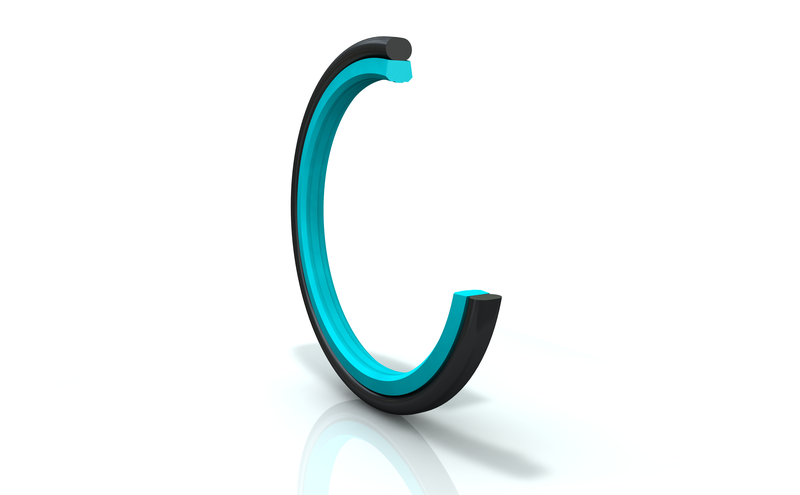

Turcon® Roto Glyd Ring® S - Incl. O-Ring (Shaft) - TG5200320-Z80

Turcon® Roto Glyd Ring® S is used to seal rotary transmission lead-throughs journals, swivels and with rotary or oscillating movement. The seal is double-acting and can be exposed to pressure from one, or both, sides. It consists of a seal ring of Turcon® material and is activated by an O-Ring as an elastic energizing element. The contact surface profile of the seal ring is specially designed for use with high pressures and at low sliding speeds.

Roto-GlydRing®Turcon®:

TSS Article Number (3 to 9)5200320

Signature StandardTG5200320-Z80

Type of Article0

Quality (10th Digit)-

Root Groove Inside Diameter32 mm

Root Groove Outside Diameter43 mm

Compound codeZ80

Root Groove Width4.20 mm

Groove Diameter Inside32 mm

Groove Diameter Outside43 mm

Groove Width4.20 mm

Article GroupTG

Turcon® Roto Glyd Ring® S - Incl. O-Ring (Shaft)

Material Information for the product(s) on this page

Z80

Z80

Maximum Temperature:

80

Ball Hardness:

29

Material Code Class:

Thermoplastic

Material:

Z80

Gravity Tolerance:

+/-0.01

Color:

White to Offwhite

Specific Gravity:

0.93

Minimum Temperature:

-200

Material Type:

UHMW PE

Gravity Unit:

g/cm³
