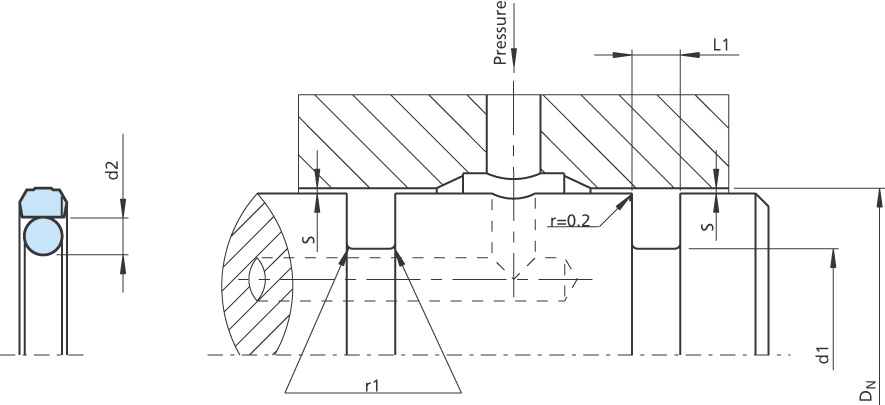

Turcon® Roto Glyd Ring® S is used to seal rotary transmission lead-throughs journals, swivels and with rotary or oscillating movement. The seal is double-acting and can be exposed to pressure from one, or both, sides. It consists of a seal ring of Turcon® material and is activated by an O-Ring as an elastic energizing element. The contact surface profile of the seal ring is specially designed for use with high pressures and at low sliding speeds.
Roto-GlydRing®Turcon®:
TSS Article Number (3 to 9)6100550
Signature StandardTG6100550-Z80V
Type of Article0
Quality (10th Digit)-
Root Groove Inside Diameter47.5 mm
Root Groove Outside Diameter55 mm
Compound codeZ80V
Root Groove Width3.2 mm
Groove Diameter Inside47.5 mm
Groove Diameter Outside55 mm
Groove Width3.2 mm
Groove Thickness0 mm
Article GroupTG
Material Information for the product(s) on this page
V70GA
Shore A Hardness:
70+/- 5
Material Code Class:
Elastomer
Maximum Hardness:
70
Minimum Temperature:
-20
Specific Gravity:
2.02
Material:
V70GA
Hardness Tolerance:
+/- 5
Gravity Unit:
g/cm³
Minimum Hardness:
70
Material Type:
FKM
Color:
Green
Hardness unit:
Shore A
Maximum Temperature:
200
Gravity Tolerance:
+/-0.03
Z80
Maximum Temperature:
80
Ball Hardness:
29
Material Code Class:
Thermoplastic
Material:
Z80
Gravity Tolerance:
+/-0.01
Color:
White to Offwhite
Specific Gravity:
0.93
Minimum Temperature:
-200
Material Type:
UHMW PE
Gravity Unit:
g/cm³
