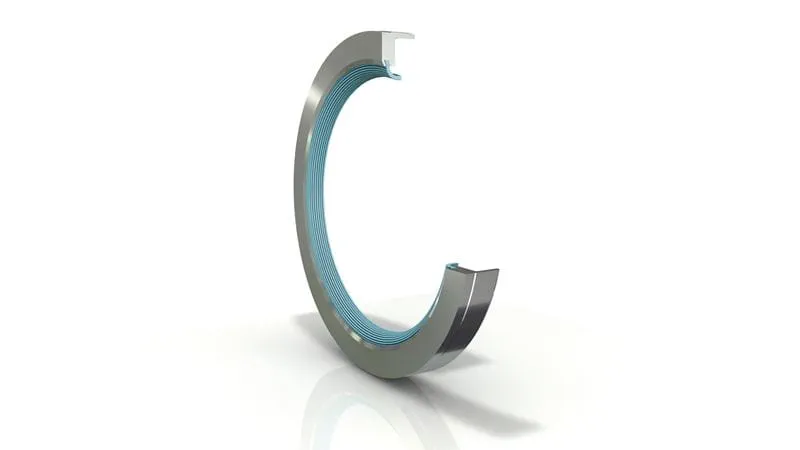

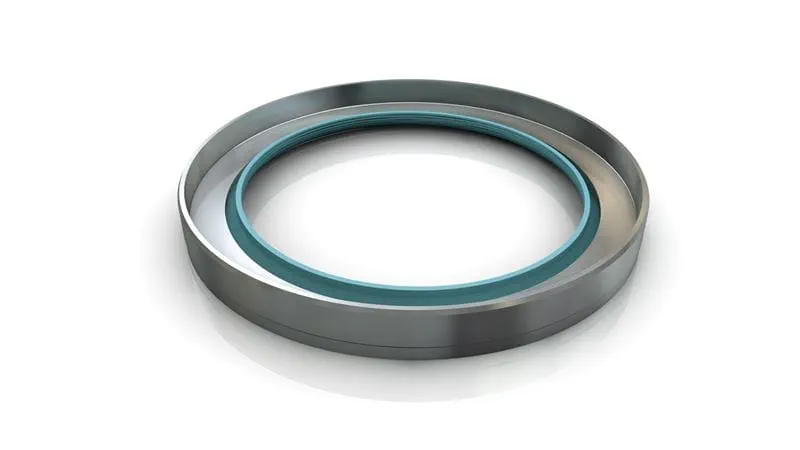

Turcon® Varilip® PDR - Type D - TJD4B0400-MF31
Turcon® Varilip® PDR are constructed from only two parts – a precision manufactured metal body and a mechanically retained Turcon® sealing element. Unlike seals with pressed metal cases, a gasket is not required to provide sealing between the lip and casing. This is provided by the mechanical retention of the lip, thus improving both the chemical resistance and temperature range of the sealing system. The mechanical retention of the Turcon® element provides a robust product which also eliminates the process of bonding the Turcon® to a metal or elastomer substrate.
Rotary/PDR Seal:
TSS Article Number (3 to 9)D4B0400
Signature StandardTJD4B0400-MF31
Type of Article0
Quality (10th Digit)-
Root Groove Inside Diameter40 mm
Root Groove Outside Diameter62 mm
Compound codeMF31
Root Groove Width7 mm
Groove Diameter Inside40 mm
Groove Diameter Outside62 mm
Groove Width7 mm
Groove Thickness11 mm
Article GroupTJ
Material Information for the product(s) on this page
MF3
Gravity Tolerance:
+/-0.03
Minimum Temperature:
-200
Material Code Class:
Thermoplastic
Specific Gravity:
2.17
Material:
MF3
Material Type:
PTFE
Maximum Temperature:
260
Ball Hardness:
25
Gravity Unit:
g/cm³
Color:
White to Offwhite
