TPC100140-T401V

Turcon® Varilip® Type C - TPC100140-T401V

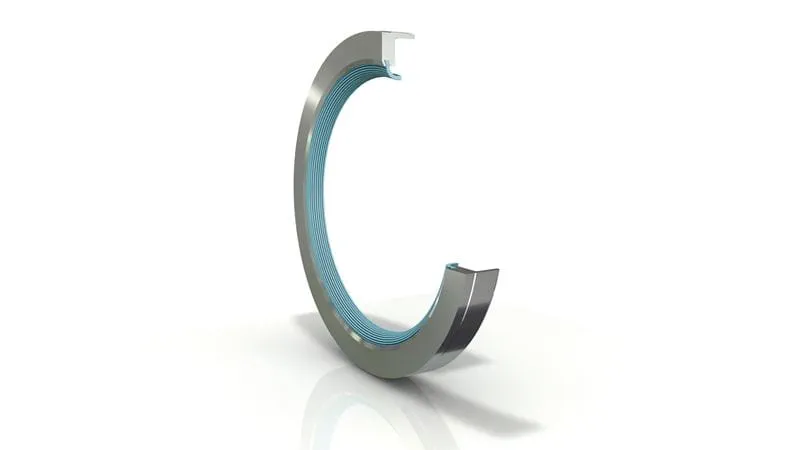

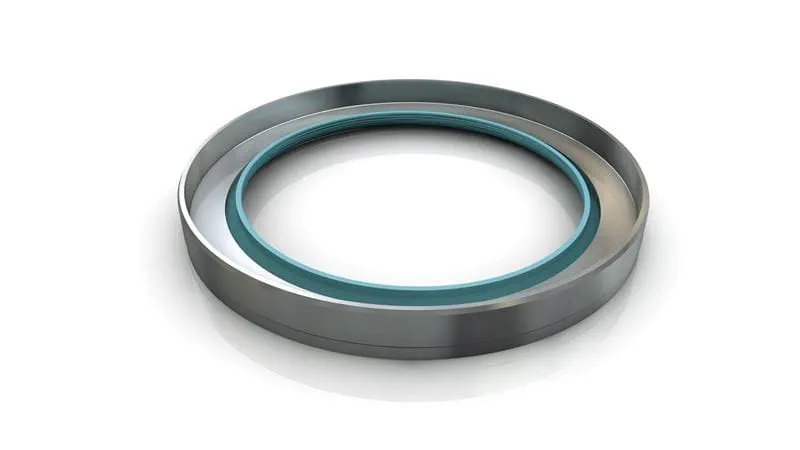

Turcon® Varilip® Type C are constructed from only two parts – a precision manufactured metal body and a mechanically retained Turcon® sealing element. Unlike seals with pressed metal cases, a gasket is not required to provide sealing between the lip and casing. This is provided by the mechanical retention of the lip, thus improving both the chemical resistance and temperature range of the sealing system. The mechanical retention of the Turcon® element provides a robust product which also eliminates the process of bonding the Turcon® to a metal or elastomer substrate.

Rotary/Varilip®/Turcon®:

TSS Article Number (3 to 9)C100140

Signature StandardTPC100140-T401V

Type of Article0

Quality (10th Digit)-

Root Groove Inside Diameter14 mm

Root Groove Outside Diameter24 mm

Compound codeT401V

Root Groove Width7 mm

Groove Diameter Inside14 mm

Groove Diameter Outside24 mm

Groove Width7 mm

Groove Thickness5 mm

Article GroupTP

Material Information for the product(s) on this page

T40

T40

Material:

T40

Ball Hardness:

27

Minimum Temperature:

-200

Material Type:

PTFE

Specific Gravity:

2.07

Maximum Temperature:

260

Material Code Class:

Thermoplastic

Gravity Tolerance:

+/-0.03

Gravity Unit:

g/cm³

Color:

Grey
