TRC (DIN 3761 Type B) - TRCA02500-N7MWR

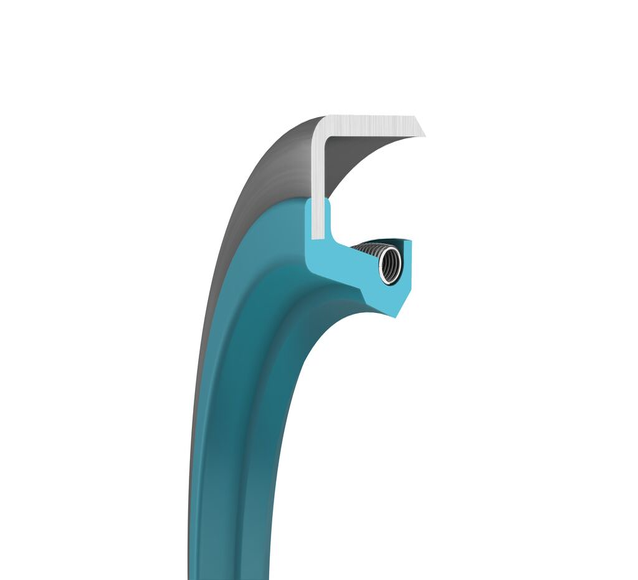

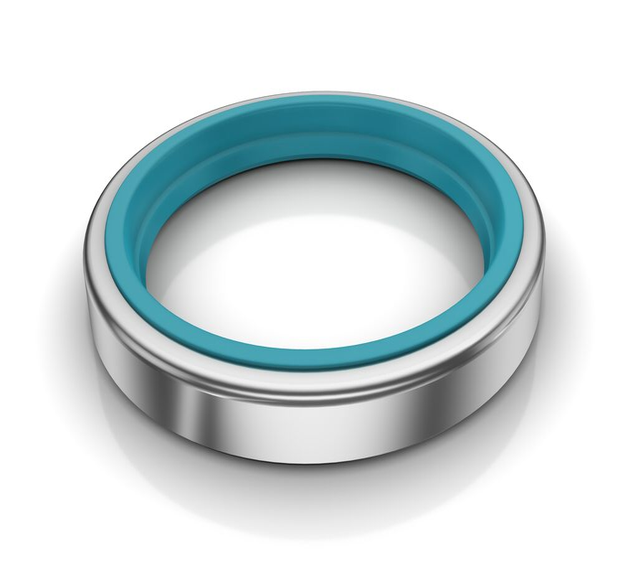

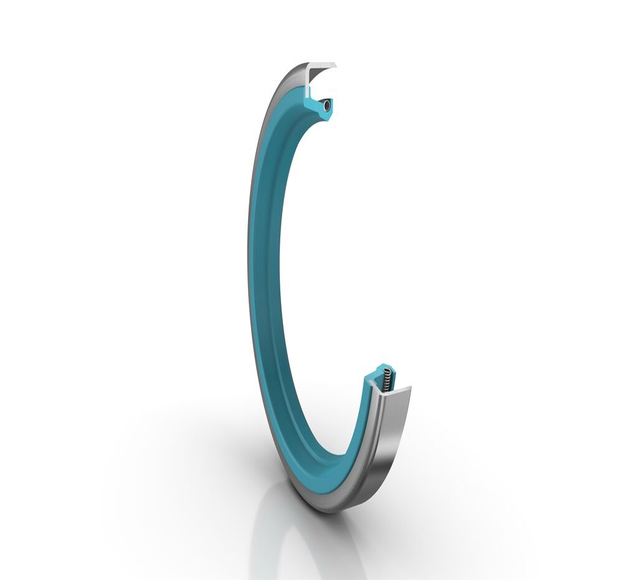

Radial Oil Seals TRC are metal-cased radial lip seals. This type is not recommended for use in heavily polluted environments. As the static sealing between housing and metallic shell is limited, low viscosity media can "creep". Better performance can be achieved with an epoxy-based resin outer diameter coating. This special treatment is on request.
Rotary/Rad.OilSeal-metr.:
TSS Article Number (3 to 9)CA02500
Signature StandardTRCA02500-N7MWR
Type of Article0
Quality (10th Digit)-
Root Groove Inside Diameter250 mm
Root Groove Outside Diameter280 mm
Compound codeN7MWR
Groove Diameter Inside250 mm
Groove Diameter Outside280 mm
Ring Thickness15 mm
Article GroupTR
Root Ring Thickness15 mm
Material Information for the product(s) on this page
N767R
Minimum Hardness:
70
Gravity Unit:
g/cm³
Hardness unit:
Shore A
Material Code Class:
Elastomer
Shore A Hardness:
70+/- 5
Material Type:
NBR
Specific Gravity:
1.26
Maximum Temperature:
100
Maximum Hardness:
70
Gravity Tolerance:
+/-0.02
Hardness Tolerance:
+/- 5
Material:
N767R
Minimum Temperature:
-35
Color:
Black
