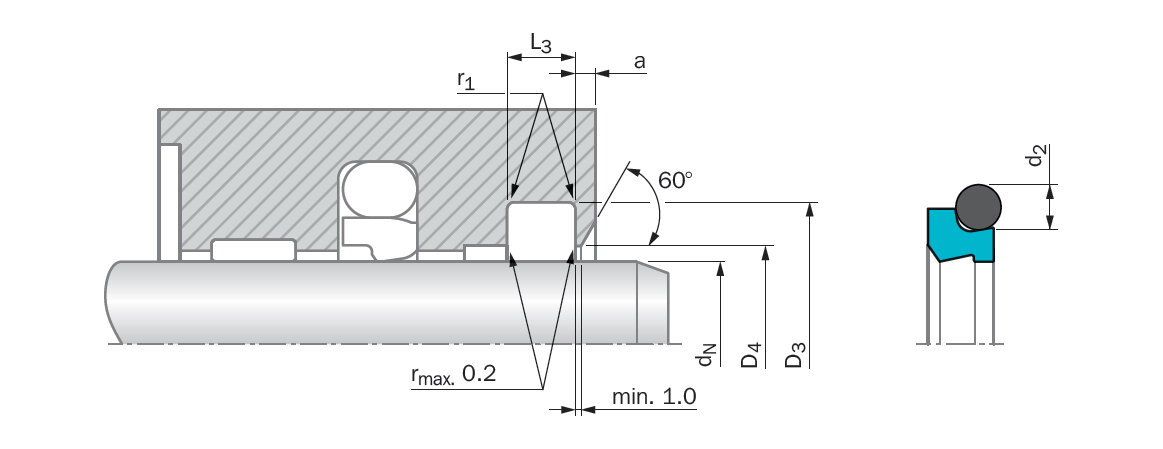

The scraper is installed with an O-Ring as elastic energizing element in one groove. The scraper function is performed by the Excluder® 5 PTFE element. The O-Ring maintains the pressure of the scraper lips against the sliding surface and can compensate deflections of the piston rod. Available in Turcon® or Zurcon® materials. The O-Ring is not included with this item.
Scrape/ Excluder®Turcon®:
TSS Article Number (3 to 9)5200800
Signature StandardWE5200800-T46
Type of Article0
Quality (10th Digit)-
Root Groove Thickness6.1 mm
Root Groove Inside Diameter80 mm
Root Groove Outside Diameter92.2 mm
Root Ring Inside Diameter79.5 mm
Root Groove Width8.1 mm
Ring Length0 mm
Groove Diameter Outside92.2 mm
Groove Diameter Inside80 mm
Groove Width8.1 mm
Groove Thickness6.1 mm
Ring Thickness5.4 mm
Ring Width7.7 mm
Legacy ID from KOM2WE5200800-T46
Root Ring Width7.7 mm
Root Ring Outside Diameter90.3 mm
Root Ring Length0 mm
Article GroupWE
Root Ring Thickness5.4 mm
Seals Helsingor Material Class:
Seal Tube OD Tolerance From92.3 mm
Material Number200000044645
Seal Tube OD Tolerance Max50 mm
Seal Tube ID Tolerance Min-50 mm
Seal Tube ID Tolerance Max-2 mm
Seal Tube OD Tolerance To140.3 mm
Seal Tube ID Tolerance To77.5 mm
Seal Tube ID Tolerance From29.5 mm
Class Dependencies200000044645
Ring Diameter Outside90.3 mm
Compound codeT46
Ring Diameter Inside79.5 mm
Compound Type110
Seal Tube OD Tolerance Min2 mm
Material Information for the product(s) on this page
T46
Gravity Unit:
g/cm³
Material:
T46
Material Type:
PTFE
Material Code Class:
Thermoplastic
Maximum Temperature:
260
Minimum Temperature:
-200
Ball Hardness:
29
Color:
Greyish to Dark Brown
Gravity Tolerance:
+/-0.04
Specific Gravity:
3.07
