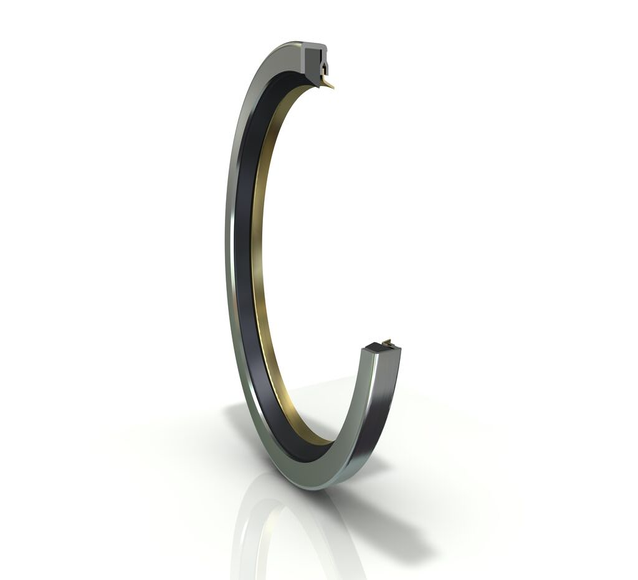

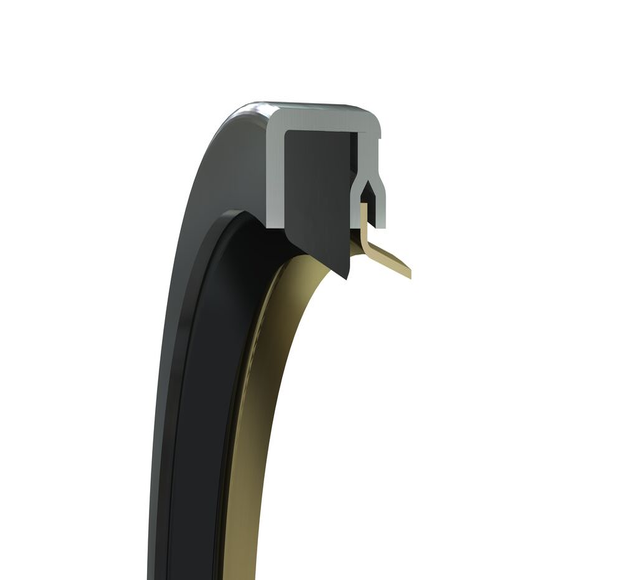

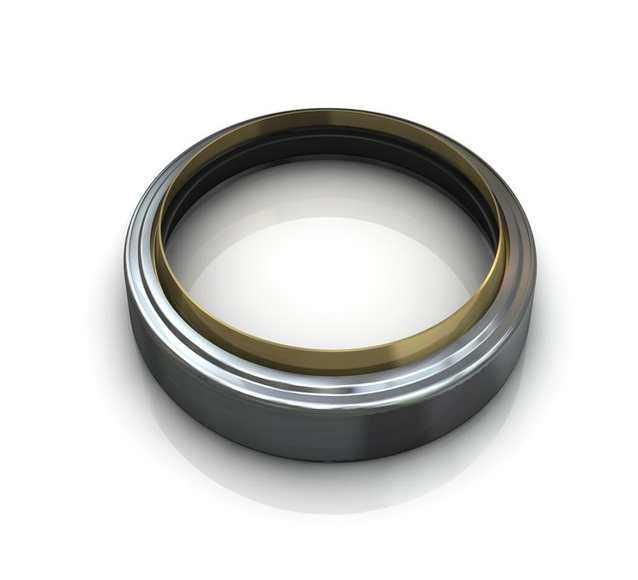

Metal Scraper AT - WM0000320-NBMS0
Metal Scraper is a single-acting hydraulic rod wiper featuring a sturdy steel casing that integrates. This simple yet robust scraper enhances system longevity by protecting internal hydraulic components through effective cleaning. Available in NBR or FKM, and easy to retrofit, it’s a cost-effective solution for maintaining seal integrity in harsh environments.
Scraper/Metal:
TSS Article Number (3 to 9)320
Signature StandardWM0000320-NBMS0
Type of Article0
Quality (10th Digit)-
Root Groove Thickness7 mm
Root Groove Inside Diameter32 mm
Root Groove Outside Diameter45 mm
Compound codeNBMS0
Groove Diameter Inside32 mm
Groove Diameter Outside45 mm
Groove Width7 mm
Groove Thickness6.50 mm
Article GroupWM
Material Information for the product(s) on this page
NB62M
Gravity Tolerance:
+/-0.03
Minimum Hardness:
85
Gravity Unit:
g/cm³
Specific Gravity:
1.33
Color:
Black
Hardness unit:
Shore A
Maximum Hardness:
85
Material Code Class:
Elastomer
Shore A Hardness:
85+/- 5
Material Type:
NBR
Material:
NB62M
Maximum Temperature:
100
Hardness Tolerance:
+/- 5
Minimum Temperature:
-30
